Cable exhaust air control KDS 116

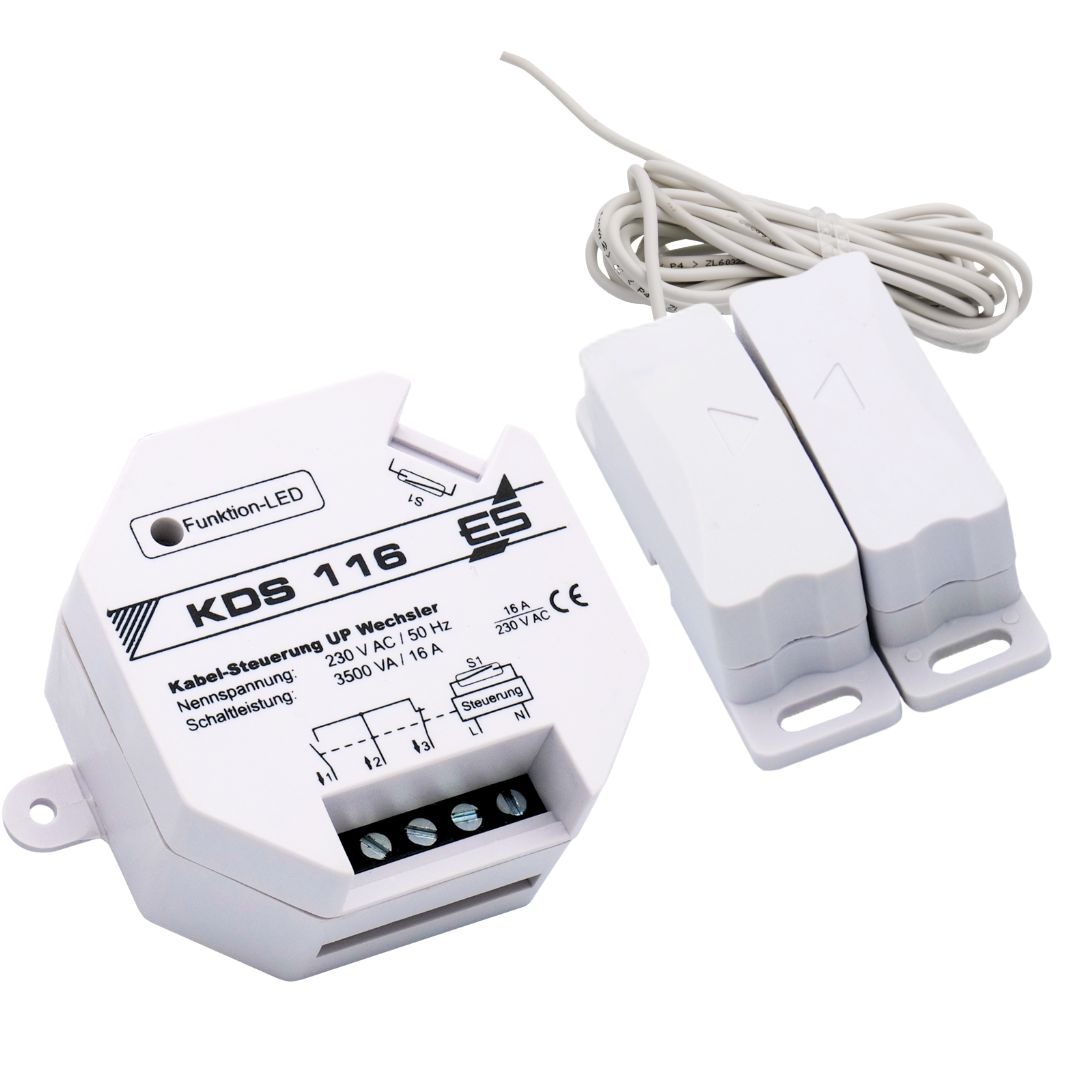

KDS 116 Kabel-Abluftsteuerung mit Steuergerät und kabelgebundenem FensterkontaktKDS 116 Kabel-Abluftsteuerung mit 16 A Wechsler für leistungsstarke Geräte bis 2300 WKDS 116 mit potentialfreiem 16 A Wechsler für flexible Schalt- und SteuerungsaufgabenVergleich KDS 110 mit DIBt-Zulassung und KDS 116 mit höherer Schaltleistung bis 16 AAbmessungen der KDS 116 Kabel-AbluftsteuerungKabel-Steuerung KDS 116 mit ReedkontaktCable exhaust air control KDS 116Cable exhaust air control KDS 116Cable exhaust air control KDS 116Cable exhaust air control KDS 116Cable exhaust air control KDS 116Cable exhaust air control KDS 116

Cable exhaust air control KDS 116

Sorgt für den sicheren Betrieb von Abluftanlagen, indem sie die Fensterstellung überwacht und an den Einbau-Empfänger überträgt
  • ensures safe operation of extractor hood controls, bathroom fan controls, exhaust air tumble dryers
  • Protects against negative pressure, which could, among other things, draw dangerous carbon monoxide into the room air
  • TÜV-tested(without DIBt certification)
  • higher switching capacity: 3500 VA (2300 W) / 16 A (10 A)
  • Relay contact 16 A changeover contact (potential-free)
  • Extractor hood lighting workseven with the window closed
  • expandable with additional switchKMS 098K22for second window
  • suitable for example for BORA Professional Home In,Miele PUR 98,Miele KMDA7774



🧹 Vom Schornsteinfeger gefordert? Wer eine Abluftanlage zusammen mit einer raumluftabhängigen Feuerstätte betreibt, braucht eine geprüfte Sicherheitseinrichtung nach Feuerungsverordnung, damit kein gefährlicher Unterdruck entsteht – dieses Gerät erfüllt genau diese Aufgabe.
79,00 €inkl. MwSt. zzgl. Versand
Auf Lager · Lieferzeit 4–5 Werktage mit DHL
Art.-Nr.: 300750EAN: 4044764000919
PayPal Klarna Mastercard Visa Google Pay Apple Pay Shop Pay
Versandkostenfreiab 100 €
5 JahreGarantie ›
14 TageWiderrufsrecht

Scope of delivery

  • Control unit (receiver)
  • Cable magnetic switch / window contact (transmitter)
  • Control cable 6 m (flexible cable LIYY (2 x 0.14 mm²), diameter 3.0 mm
  • 4 spacer plates for magnet/switch (for height adjustment when mounting on the window or window frame)
  • Mounting material
  • Operating instructions

Color telegray, transmitter housing also available on request in various RAL colors for an additional charge!

The KDS 116 cable exhaust air control ensures the safe operation of exhaust air systems by monitoring the window position and transmitting the information via the control cable to the built-in receiver. The magnetic switch on the window reliably detects whether the window is tilted or open. Only when the window is open can fresh air flow in, preventing dangerous negative pressure that could draw toxic carbon monoxide from combustion chambers into the room.

The KDS 116 cable exhaust control does not interrupt the entire power supply to the exhaust air system when the window is closed. The power is disconnected selectively – only the fan function is deactivated, allowing other functions such as lighting, the timer, or the control panel to remain active , provided the device installation supports this. A plus in convenience and safety!

Operation with second window (OR operation):
You have the option of using a second window with an additional cable magnetic switch KMS 098K22 (item 300743). In this case, at least one window must be open for the exhaust air system to operate.

KDS 116 combined with flue gas temperature monitor ATW-519 : As soon as the flue gas temperature in the flue pipe exceeds 40 °C, the window must be opened.
