Wireless exhaust air control FDS 100 DIBt
Funkabluftsteuerung FDS100 mit TÜV-Prüfsiegel und Ü-ZeichenUnsichtbare Gefahr durch Unterdruck in der KücheSicher nur mit Frischluft - die Funk-Abluftsteuerung FDS 100 Abzug startet nur bei geöffnetem FensterFunktionsweise der Funk Abluftsteuerung VollautomatischFunk-Abluftsteuerung mit Dibt-Zulassung empfohlen vom SchornsteinfegerDibt-Zugelassen und TÜV geprüft bei Kamin und AbluftFDS 100 die Vorteile auf einen Blick, Beleuchtung der Dunstabzugshaube bleibt aktivFunkabluftsteuerung FDS 100 LieferumfangAbmessungen der FDS100 FunkabluftsteuerungSicher kochen - auch mit Kamin Abluftsteuerung per FunkFunk-Abluftsteuerung FDS 100 Sender am Fenster geschlossenFunk-Abluftsteuerung FDS 100 Sender am Fenster geöffnet

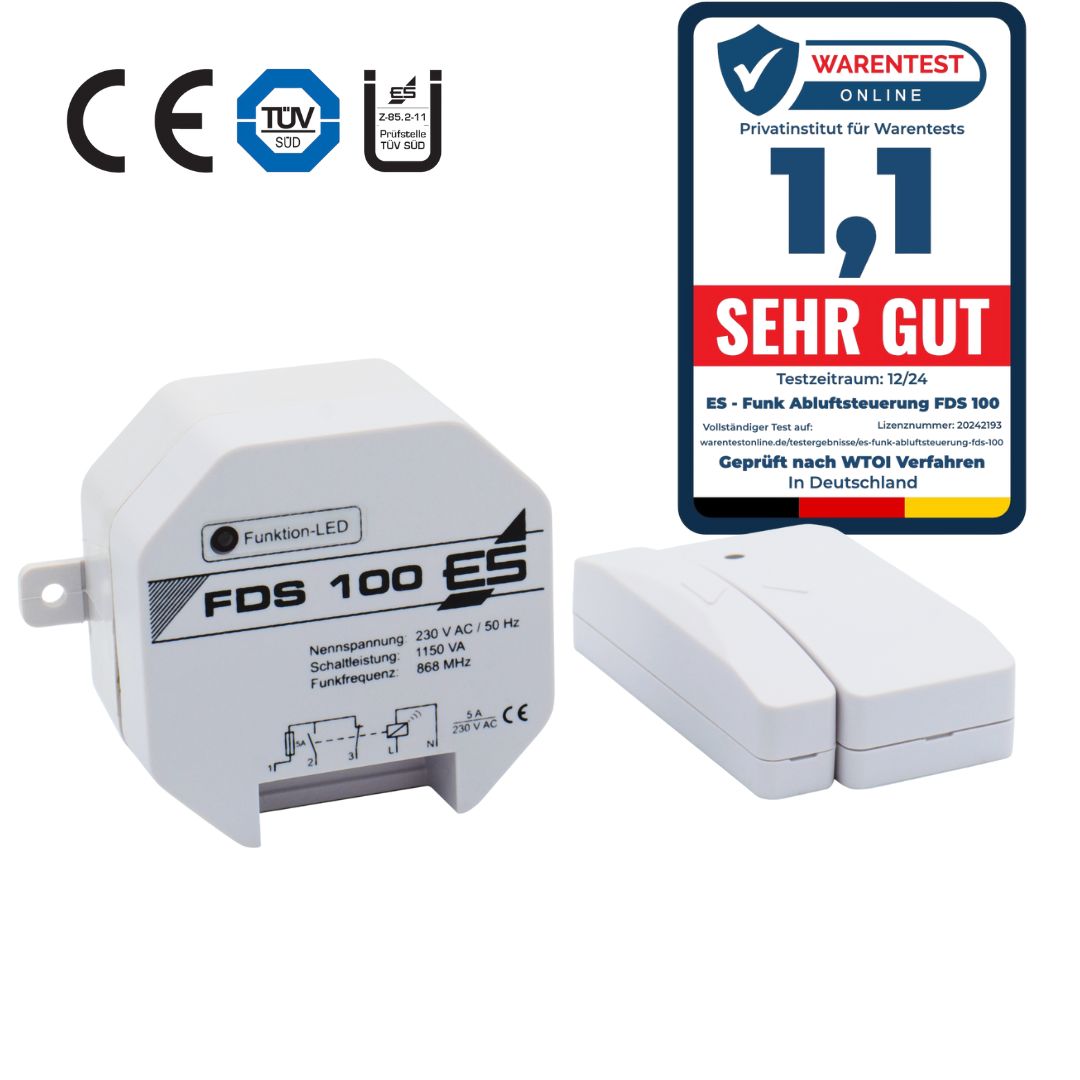

Wireless exhaust air control FDS 100 DIBt

Fensterkontakt-Steuerung für den sicheren Betrieb von Dunstabzug & Kaminofen
  • ensures safe operation of exhaust air systems, extractor hood controls and bathroom fan controls
  • TÜV-testedwithDIBt approval Z-85.2-11
  • Radio link and battery monitoring
  • Relay contact 5 A, potential-free changeover contact, for switching motors or control contacts
  • Extractor hood lighting workseven when the window is closed, if only the motor supply line is switched
  • 4 spacer plates for magnet as height adjustment to the window
  • expandable with additional transmitterFDS 098orFDS 098(L)(Note dimensions!) for second window
  • suitable for example for BORA Professional Home In,Miele PUR 98,Miele KMDA7774
🧹 Vom Schornsteinfeger gefordert? Wer Dunstabzug und Feuerstätte (Kamin, Ofen, Gastherme) zusammen betreibt, braucht nach § 4 FeuVO eine geprüfte Abluftsteuerung – dieses Gerät ist DIBt-zugelassen und erfüllt genau das.
155,00 €inkl. MwSt. zzgl. Versand
Auf Lager · Lieferzeit 4–5 Werktage mit DHL
Art.-Nr.: 300268EAN: 4044764000605
PayPal Klarna Mastercard Visa Google Pay Apple Pay Shop Pay
Versandkostenfreiab 100 €
5 JahreGarantie ›
DIBt-zugelassenZ-85.2-11
Geprüft & zugelassen Zertifizierungen Wireless exhaust air control FDS 100 DIBt

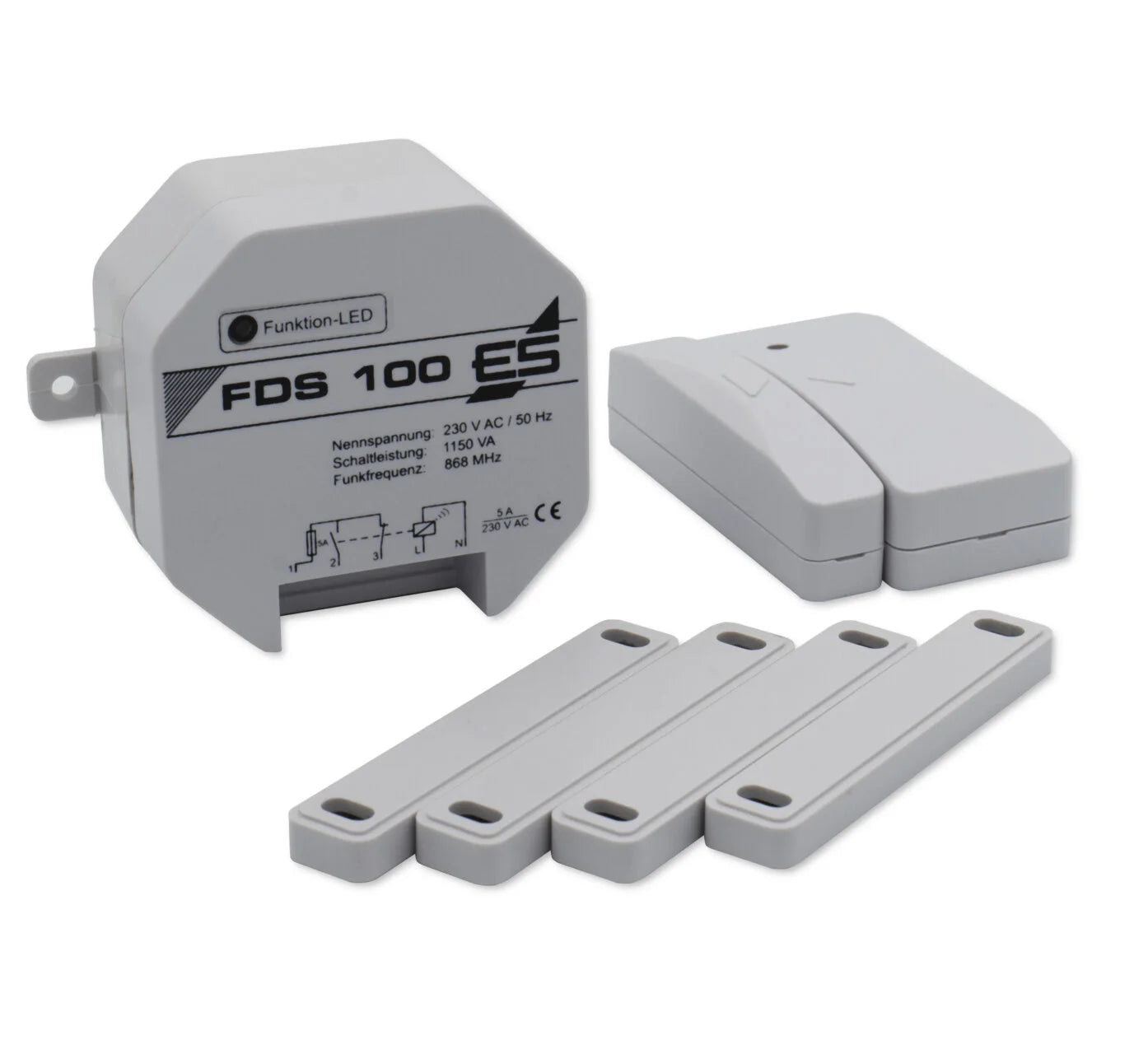

Scope of delivery

  • Recipient
  • Wireless magnetic switch (transmitter and magnet)
  • Battery CR2032
  • 4 spacer plates for magnet/transmitter (for height adjustment when mounting on the window or window frame)
  • Mounting material
  • Operating instructions

Colour telegrey, transmitter housing also available on request in various RAL colors available for an additional charge

The FDS 100 Set with DIBt approval ensures the safe operation of exhaust air systems by monitoring the window position and transmitting the information wirelessly to the built-in receiver. The transmitter on the window reliably detects whether the window is tilted or open. Only when the window is open can fresh air flow in, preventing dangerous negative pressure that could draw toxic carbon monoxide from combustion chambers into the room.

The FDS 100 Set interrupts when window is closed not the entire power supply to the exhaust air system. The current separation is selective – only the fan function is switched off so that other functions such as Lighting, time or control panel still active can remain as long as the device installation supports this. An added level of comfort and safety!

Operation with second window (OR operation):
You have the option of using a second window with an additional FDS 098 wireless magnetic switch (item: 300098). At least one window must be open for the exhaust system to operate. Using the wireless receiver's serial number, Elektrotechnik-Schabus can program another wireless switch for the set.
The serial number can be found on the type plate of the radio receiver and the transmitter under the barcode field

Operation with two windows (AND operation):
If the minimum gap opening of one of your windows is not sufficient for safe operation, or if your chimney sweep requires you to open two windows to ensure safe operation, you will need two FDS 100 sets with different coding. The relay outputs of the two receivers are connected in series – this way, the exhaust air system is only released when the window is open. both windows.

Second recipient:
An existing FDS 100 SET can be supplemented with an additional receiver at any time – for example as a built-in version (FDS 199) or plug-in variant (FDS 299) . Both receivers respond simultaneously to the transmitter's radio signal and each activates the connected exhaust system. For this, Elektrotechnik-Schabus requires the serial number to code the devices to each other.

FDS 100 combined with ATW 519 exhaust gas temperature monitor (wired): As soon as the exhaust gas temperature in the exhaust pipe exceeds 40°C, the window must be opened:

FDS 100 combined with wireless flue gas temperature monitor: As soon as the exhaust gas temperature in the exhaust pipe exceeds 40°C, the window must be opened: FTX with FDS 100 Set

Our device performs cyclical an automatic RESET After that, the window must be opened once (and closed beforehand if necessary) to restart the system.
With “normal use” of 1-2 hours per day and an optimal wireless connection (no stainless steel or other shielding materials, ideally with line of sight), a battery life of up to 2 years can be expected with a fresh branded battery.

  • Empfänger
  • Funk-Magnetschalter (Sender und Magnet)
  • Batterie CR2032
  • 4 Distanzplatten für Magnet/Sender (für Höhenausgleich bei der Montage am Fenster oder Fensterrahmen)
  • Montagematerial
  • Bedienungsanweisung

Farbe telegrau, Gehäuse des Senders auch in Standard braun RAL 8016 sowie in verschiedenen RAL-Farben gegen Aufpreis erhältlich

Betriebsspannung230 V AC / 50-60 Hz
Schaltleistung1150 VA (700 W) / 5 A (changer)
Leistungsaufnahme1.5 W
BatterieCR2023/ 3 V
Reichweitebis zu 20 Meter im Freifeld
Funkfrequenz868 MHz SRD
SchutzartIP20
Betriebstemperatur-15 °C bis +40 °C
Abmessungen (H×B×T)

Receiver 53x53x31 mm, transmitter 59x25x18 mm, magnetic switch 59x11x18 mm, spacer plate 59x11x5 mm

ZulassungDIBt Z-85.2-11
WEEE-Reg.-Nr.DE91394868
  • ✓ Versand mit DHL – Lieferzeit 4–5 Werktage
  • ✓ 14 Tage Rückgaberecht
  • ✓ Reparatur & Ersatzteile direkt vom Hersteller
  • ✓ Kauf auf Rechnung möglich

Operating instructions

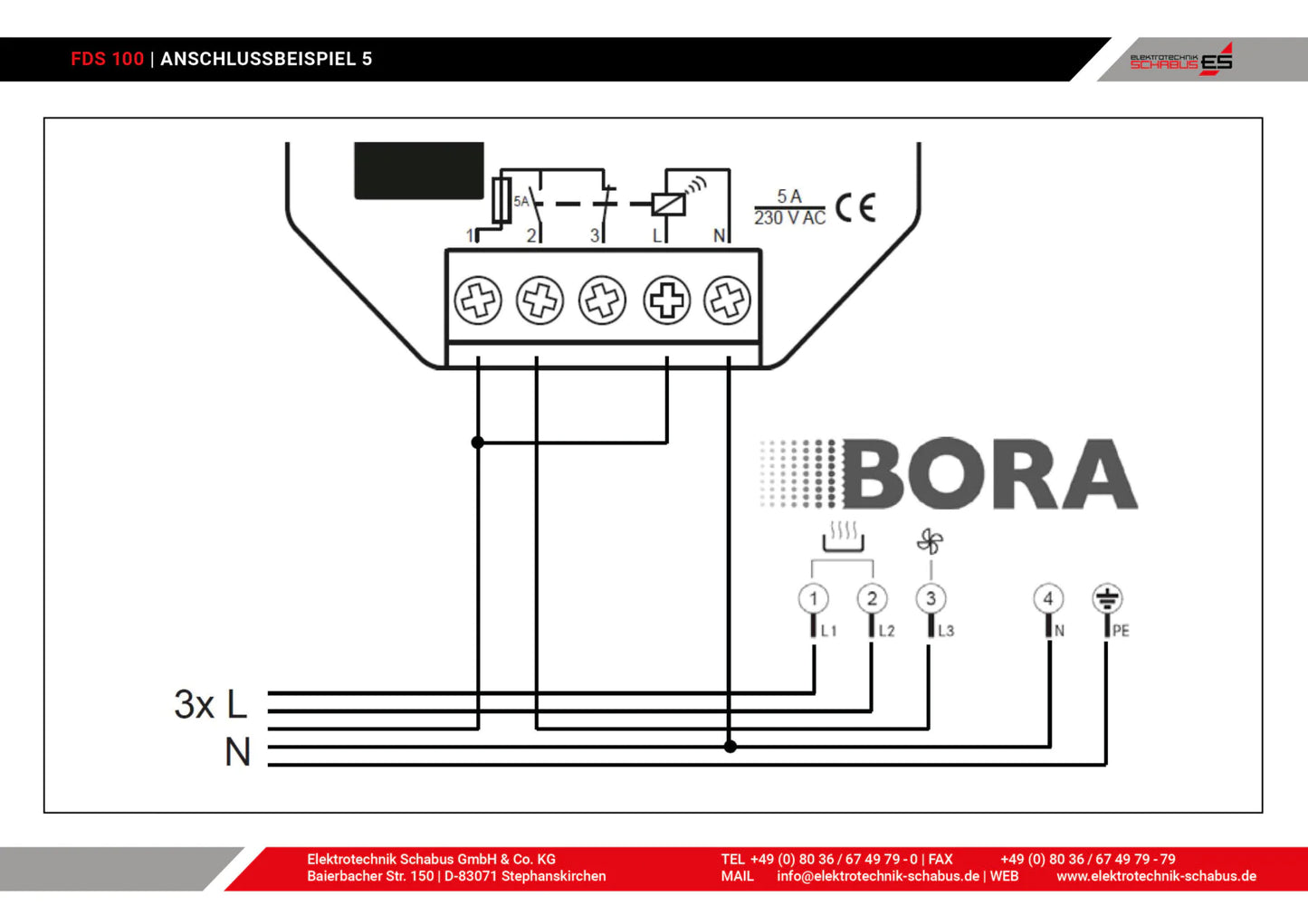

Connection examples
