Electric supply air damper ⌀ 100 mm

Electric supply air damper ⌀ 100 mm

205,00 €
205,00 €
Sale Sold out
including VAT plus Versandkosten
  • zum Öffnen oder Schließen eines Lüftungsrohrs und zur Regelung des Luftstroms in Lüftungs- und Klimaanlagen, Regelung von Zuluft zu Dunstabzugshauben - nicht für die Abluft!
  • Zuluftrohr mit elektrischer Lüftungsklappe aus feuerhemmenden Kunststoffen
  • Anschlüsse aus galvanisiertem Stahl
  • schnellem Federrückstellmotor (Elektromotor) - öffnet und schließt jeweils in rund 8 Sekunden
  • unbegrenzte Zeit unter Spannung
  • Durchmesser: Ø 100 mm
  • Discounts for specialist companies & resellers
  • Personal expert advice (no call center!)
  • Repair service beyond the statutory warranty

Item number: 201756

Delivery time: 2-3 working days

View full details
Electric supply air damper ⌀ 100 mm

Electric supply air damper ⌀ 100 mm

205,00 €
  • Description
  • Technical information
  • Downloads
  • FAQ - Frequently asked questions
  • Reviews

Scope of delivery
<ul>
<li>Supply air damper with spring return motor 100 mm <span class="BxUVEf ILfuVd" lang="de"><span class="hgKElc"><b>⌀</b></span></span></li>
<li>Operating Instructions</li>
</ul>
<p data-start="273" data-end="584"></p>
<p data-start="273" data-end="584">The <strong data-start="277" data-end="336">supply air duct with integrated electric ventilation flap reliably ensures fresh air supply while maintaining a high level of safety. The housing is made of <strong data-start="435" data-end="464">fire-retardant plastic, and the <strong data-start="470" data-end="501">pipe connections on both sides are made of <strong data-start="511" data-end="531">galvanized steel – robust, durable, and easy to install.</p>
<p data-start="586" data-end="911">The integrated <strong data-start="602" data-end="643">return flap with spring return opens in approximately 8 seconds when 230 V mains voltage is applied. As soon as the voltage is switched off, the flap closes, dampened by the gear mechanism – also in approximately 8 seconds. This prevents uncontrolled air flow or cold penetration.</p>

<h4 data-start="913" data-end="966">Ideal in combination with Elektrotechnik-Schabus supply air control KZS 200</h4>
<p data-start="968" data-end="1221">The return damper is controlled, for example, by the <strong>Elektrotechnik-SCHABUS <a href="https://www.elektrotechnik-schabus.de/abluft-klimasteuerung/kabel-zuluftsteuerung-kzs-200">KZS 200 cable supply air control</a></strong>, which automatically opens the damper when an exhaust air device (e.g., fan) is switched on. This ensures efficient and reliable air conditioning.</p>
<p data-start="1223" data-end="1368">Please note: This supply air damper is <strong data-start="1262" data-end="1302">not suitable for exhaust air operation, e.g., with extractor hoods, and does not replace a wall conduct!</strong>


<hr data-start="1370" data-end="1373" />

<h3 data-start="1375" data-end="1399">✅ <strong data-start="1381" data-end="1399">Area of ​​application</strong></h3>
<ul data-start="1401" data-end="1595">
<li data-start="1401" data-end="1454">
<p data-start="1403" data-end="1454">Fresh air supply with fan-controlled exhaust air</p>
</li>
<li data-start="1455" data-end="1503">
<p data-start="1457" data-end="1503">Afterflow in air conditioning systems</p>
</li>
<li data-start="1504" data-end="1595">
<p data-start="1506" data-end="1595">Automatic air flow when operating fireplace stoves (with external combustion air flow)</p>
</li>
</ul>
&nbsp;

WEEE NO.: DE91394868

Operating voltage 230V AC/50-60Hz
Protection class IP 20, motor

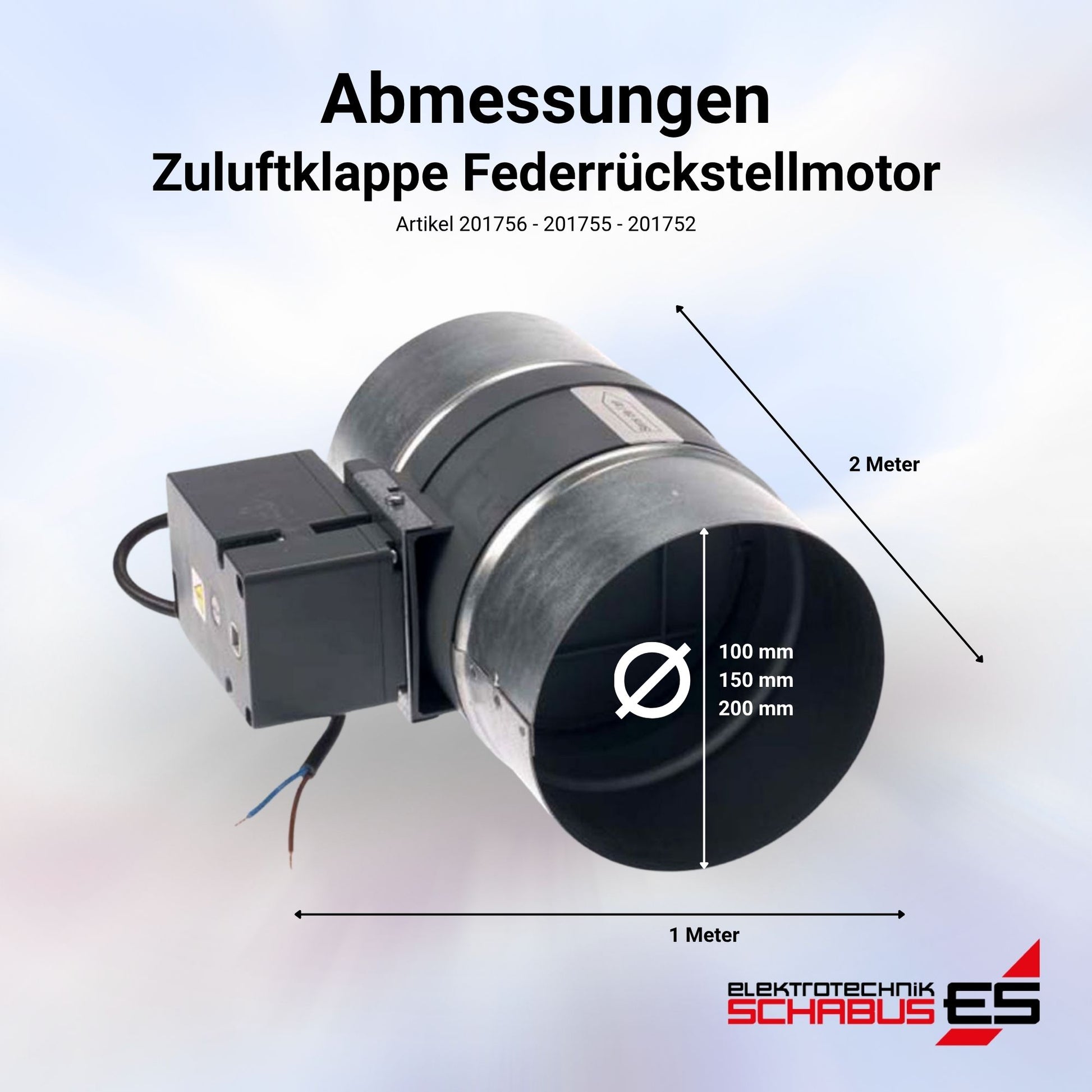

Dimensions(WxWxD)

Ø 100 mm, tube length 200 mm
Power consumption 2.5VA max.
Pressure 200 Pa
Line 2 x 0.75mm²
Material Flap made of fire-retardant plastics, galvanized sheet steel
Temperature 0°C – max. +60°C
Time approx. 8 seconds closing/opening time

💡 General information about the function

How does the reset flap in the supply air pipe work? When 230V mains voltage is applied, a spring return motor opens the flap in approx. 8 seconds. After the voltage is switched off, it closes automatically and is cushioned by an integrated return spring.

How long does it take to open and close? Around 8 seconds each. The motor works powerfully, the feedback is mechanical and quiet.

⚙️ Control and combination

How can the flap be controlled? E.g. via the Supply air control KZS 200 from Schabus. It detects the operation of an exhaust air device and automatically applies voltage to the flap.

Can the flap be operated with a light switch? Yes, in principle manual switching via a simple switch is also possible if technically installed.

🛠️ Assembly and installation

Can I wall in the supply air flap? No. These flaps may not walled up become. They must be accessible at all times and easily replaceable if necessary. We recommend a suitable pipe section with for the wall breakthrough End flangeTo which the flap is attached on the inside.

In which position can the supply air pipe be installed? Installation can be done horizontally or vertically as long as the flap can open and close unhindered.

What diameter do the pipe connections have? The pipe connections are standardized (e.g. DN100 or DN125, depending on the version). Please refer to the technical data sheet for details.

🚫 Restrictions

Is this flap suitable for extractor hoods? No. She is not for exhaust systems such as extractor hoods. In this case, use a suitable wall box.

Can it serve as a replacement for a wall box? No. This flap is not as a wall closure or external flap suitable.

🔧 Maintenance and lifespan

Is the flap maintenance-free? Yes, the system is designed to be maintenance-free. A regular visual inspection is still recommended.

How long does the engine last? The spring return motor is designed for a high number of cycles. Nevertheless, the following applies: Every electrical component should be accessible and replaceable if necessary.
