  • Monitoring of combustion sites / gas boilers in the event of carbon monoxide (CO) leakage

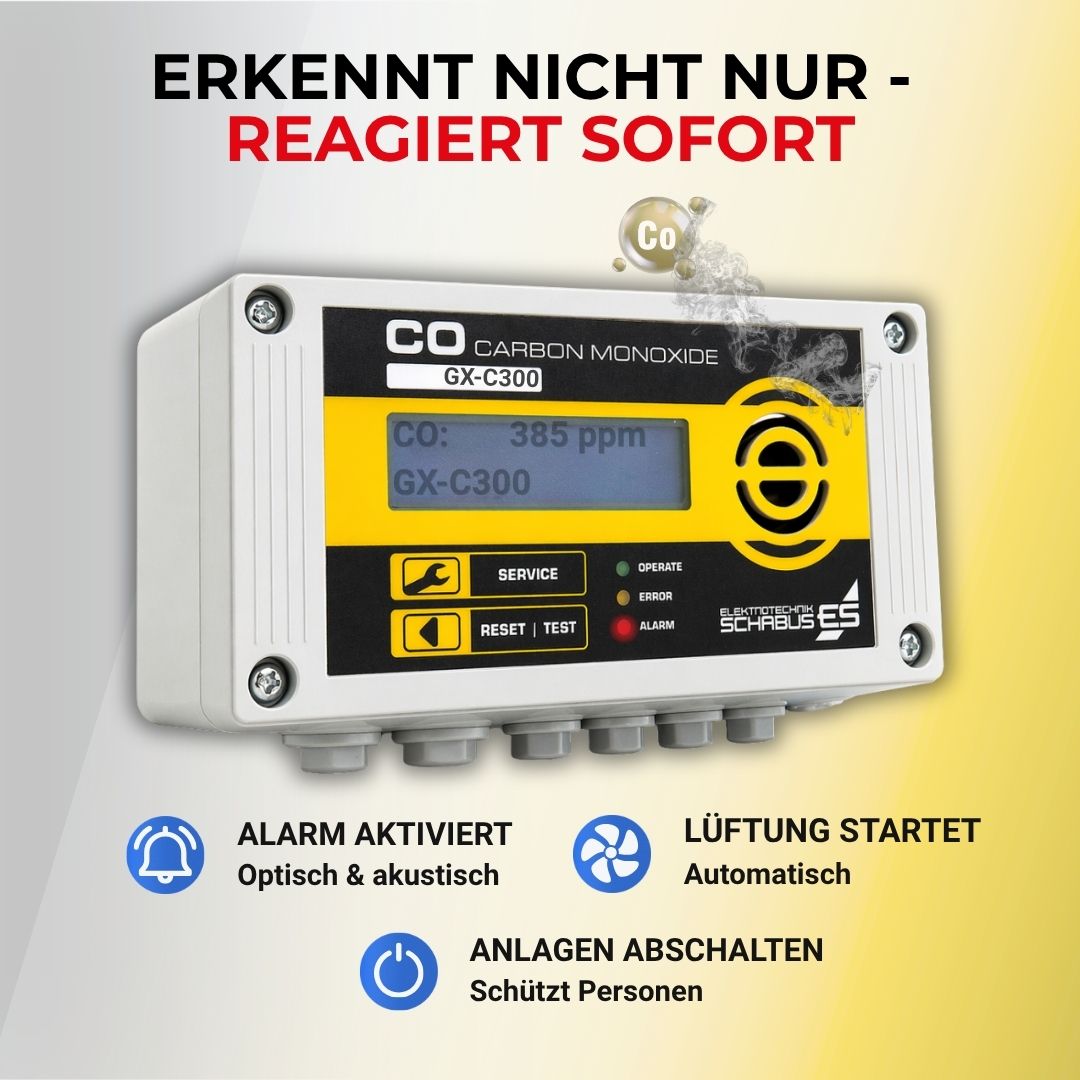

  • Switching off the source of danger in the event of an alarm
  • High-precision CO measurement and ppm-accurate display
  • 110-230V, 2 potential-free changeover relays 5 A, one each for alarm and fault, perfect for building management systems
  • DIN EN 50291 TÜV-tested sensor, intelligent sensor system to prevent false alarms
  • integrated switching power supply for low power consumption
  • acoustic and visual warning, storage and display of operating parameters in the plain text display
  • Alarm thresholds can be programmed ex works according to your specifications, e.g. 30ppm instant alarm in shisha bar

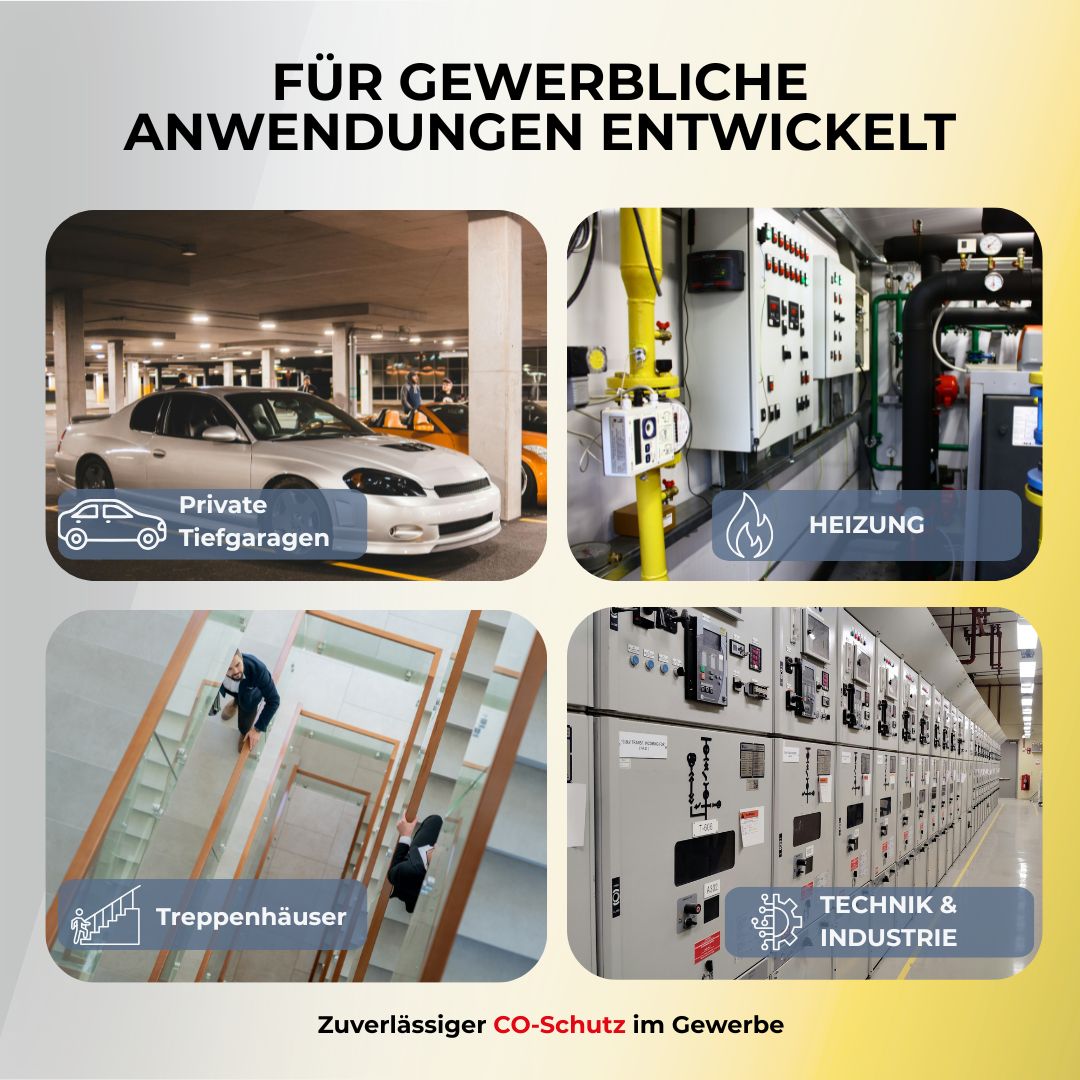

  • Use in guest rooms of shisha bars and smoking clubs, stairwells and escape routes in small private underground car parks, open fireplaces in restaurants, canteens and mobile kitchens, heating and utility rooms, all dry interior rooms with combustion sites
  • Discounts for specialist companies & resellers
  • Personal expert advice (no call center!)
  • Repair service beyond the statutory warranty

SKU: 300255

Delivery time: 2-3 working days

View full details
PROFESSIONAL CO ALARM GX-C300

PROFESSIONAL CO ALARM GX-C300

299,00 €
  • Description
  • Technical information
  • Downloads
  • Reviews

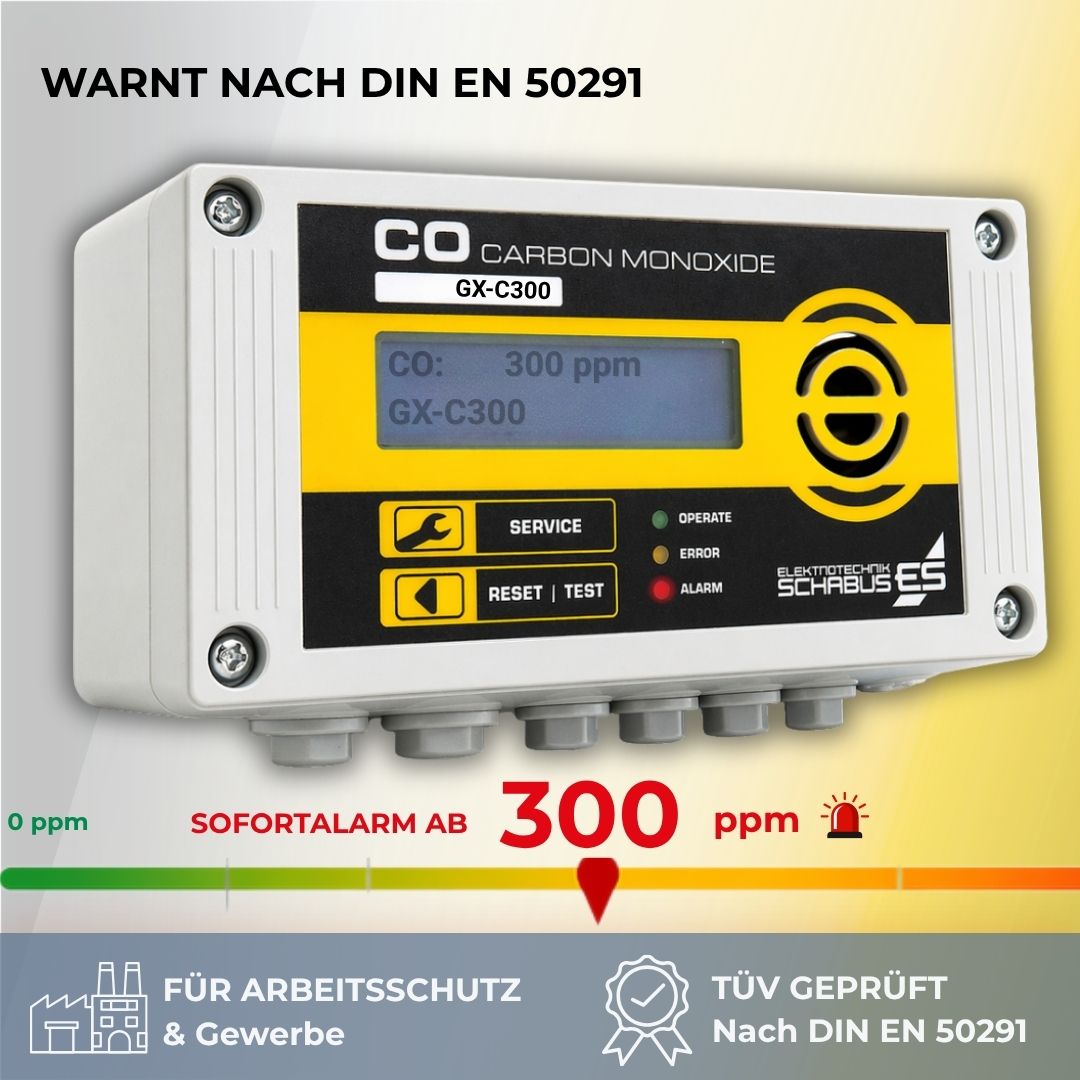

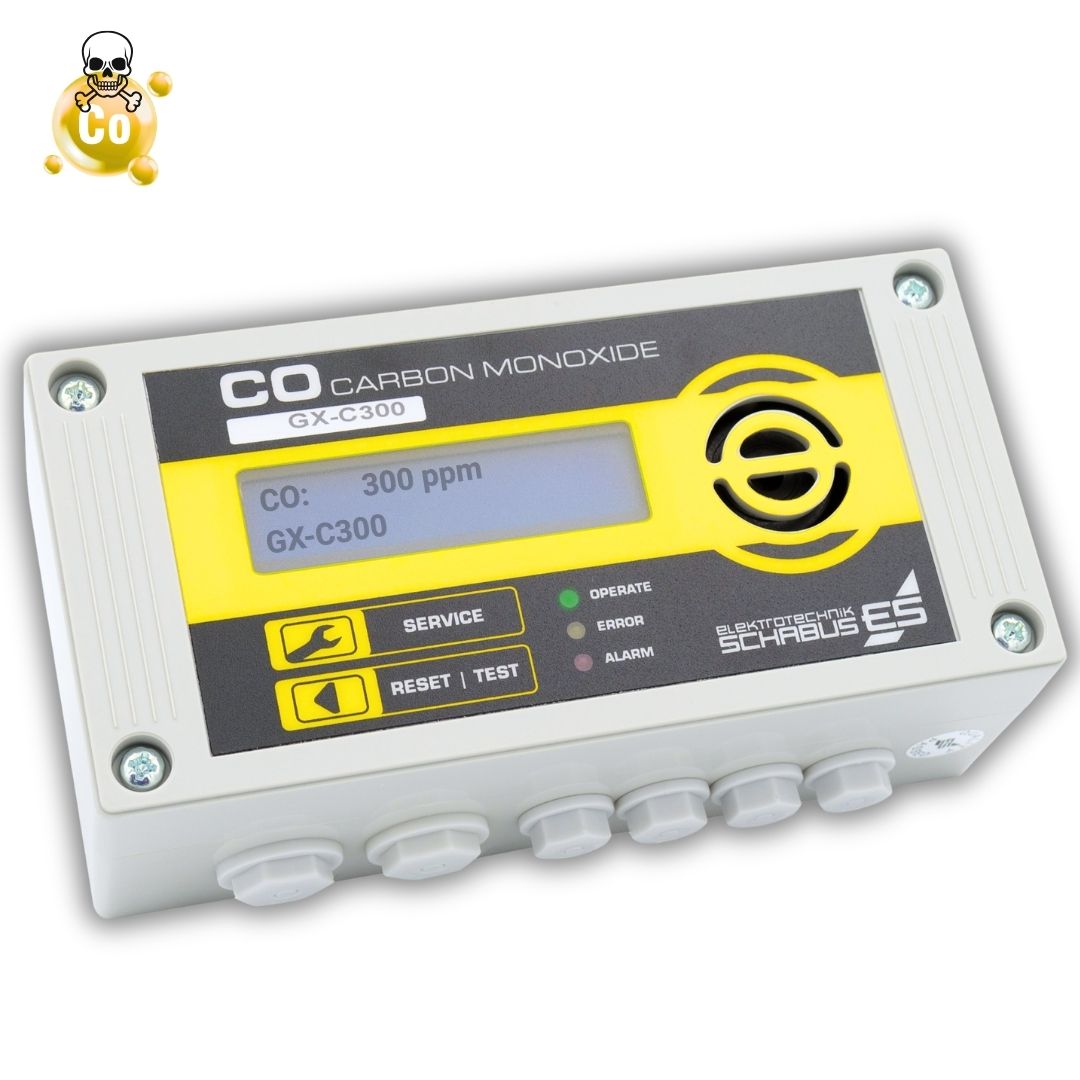

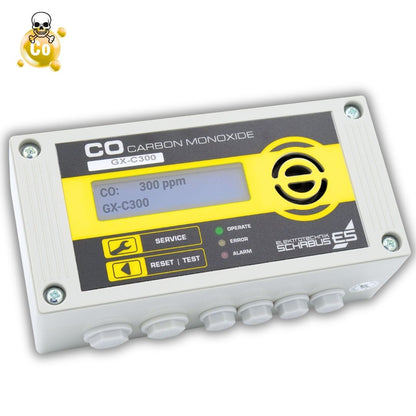

Professional carbon monoxide alarm device for permanent installation with warning levels and alarm delay times, as specified in the DIN EN 50291 standard. The CO sensor, measuring cell, evaluation unit, and software have undergone a comprehensive full test according to DIN EN 50291 by TÜV Süd, and the system has been certified as safe and stable. The GX-C300 professional CO warning system features an internal electrochemical CO sensor that delivers extremely precise CO concentration values. The exact measured CO concentrations are displayed in ppm on an illuminated plain-text display. The actual alarm is triggered loudly by an integrated piezoelectric sensor, the display flashes, and a potential-free alarm relay is activated. When an alarm is triggered and when technical faults are detected by the device itself, a potential-free changeover relay is activated, for example, to activate forced ventilation or to inform the building management system. The internal electrochemical sensor has a service life of 6 to 10 years, depending on environmental conditions, and can be easily replaced by Elektrotechnik Schabus at the factory. Installation must be performed by a qualified professional. Please observe the five safety rules! The GX-C300 gas alarm may only be installed on a wall in dry, indoor spaces. Choose the mounting position so that the display is easily readable while standing. This ensures proper functioning of the wall-mounted device. WEEE NO.: DE91394868
Operating voltage 100-240 volts AC / 50-60 Hz
Functional area -10°C / +50°C
Protection class (IP65 available on request), IP 20
Power consumption approx. 2-8VA, depending on operating condition
Advertisement 2 x 16 characters, display, ppm-accurate, text in English, white/blue illuminated
CO concentration 0…330ppm, triggering according to standard
accuracy <+/- 1%, <+/-2ppm, factory calibrated
Relay contact 2 changeover contacts nc/no potential-free
life 10 years @ max. 28°C + min. 30% rH, 6 years @ max. 40°C + min. 40% rH
humidity 10% – 90% rH, non-condensing
Sound pressure level 85 dB(A) (1m distance), Piezo
sensor electrochemical, internal
Sensor operating voltage +24V =

Instructions for use

CE declaration | EU declaration of conformity

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description
Professional carbon monoxide alarm device for permanent installation with warning levels and alarm delay times, as specified in the DIN EN 50291 standard. The CO sensor, measuring cell, evaluation unit, and software have undergone a comprehensive full test according to DIN EN 50291 by TÜV Süd, and the system has been certified as safe and stable. The GX-C300 professional CO warning system features an internal electrochemical CO sensor that delivers extremely precise CO concentration values. The exact measured CO concentrations are displayed in ppm on an illuminated plain-text display. The actual alarm is triggered loudly by an integrated piezoelectric sensor, the display flashes, and a potential-free alarm relay is activated. When an alarm is triggered and when technical faults are detected by the device itself, a potential-free changeover relay is activated, for example, to activate forced ventilation or to inform the building management system. The internal electrochemical sensor has a service life of 6 to 10 years, depending on environmental conditions, and can be easily replaced by Elektrotechnik Schabus at the factory. Installation must be performed by a qualified professional. Please observe the five safety rules! The GX-C300 gas alarm may only be installed on a wall in dry, indoor spaces. Choose the mounting position so that the display is easily readable while standing. This ensures proper functioning of the wall-mounted device. WEEE NO.: DE91394868
Technical information
Operating voltage 100-240 volts AC / 50-60 Hz
Functional area -10°C / +50°C
Protection class (IP65 available on request), IP 20
Power consumption approx. 2-8VA, depending on operating condition
Advertisement 2 x 16 characters, display, ppm-accurate, text in English, white/blue illuminated
CO concentration 0…330ppm, triggering according to standard
accuracy <+/- 1%, <+/-2ppm, factory calibrated
Relay contact 2 changeover contacts nc/no potential-free
life 10 years @ max. 28°C + min. 30% rH, 6 years @ max. 40°C + min. 40% rH
humidity 10% – 90% rH, non-condensing
Sound pressure level 85 dB(A) (1m distance), Piezo
sensor electrochemical, internal
Sensor operating voltage +24V =
Downloads

Instructions for use

CE declaration | EU declaration of conformity

Connection examples
