🛠️ Robust sensor with brass plate electrodes

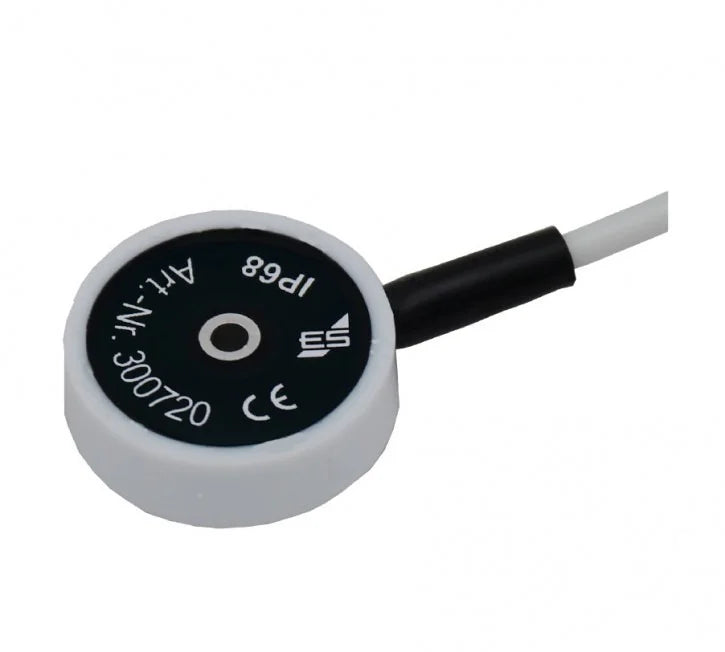

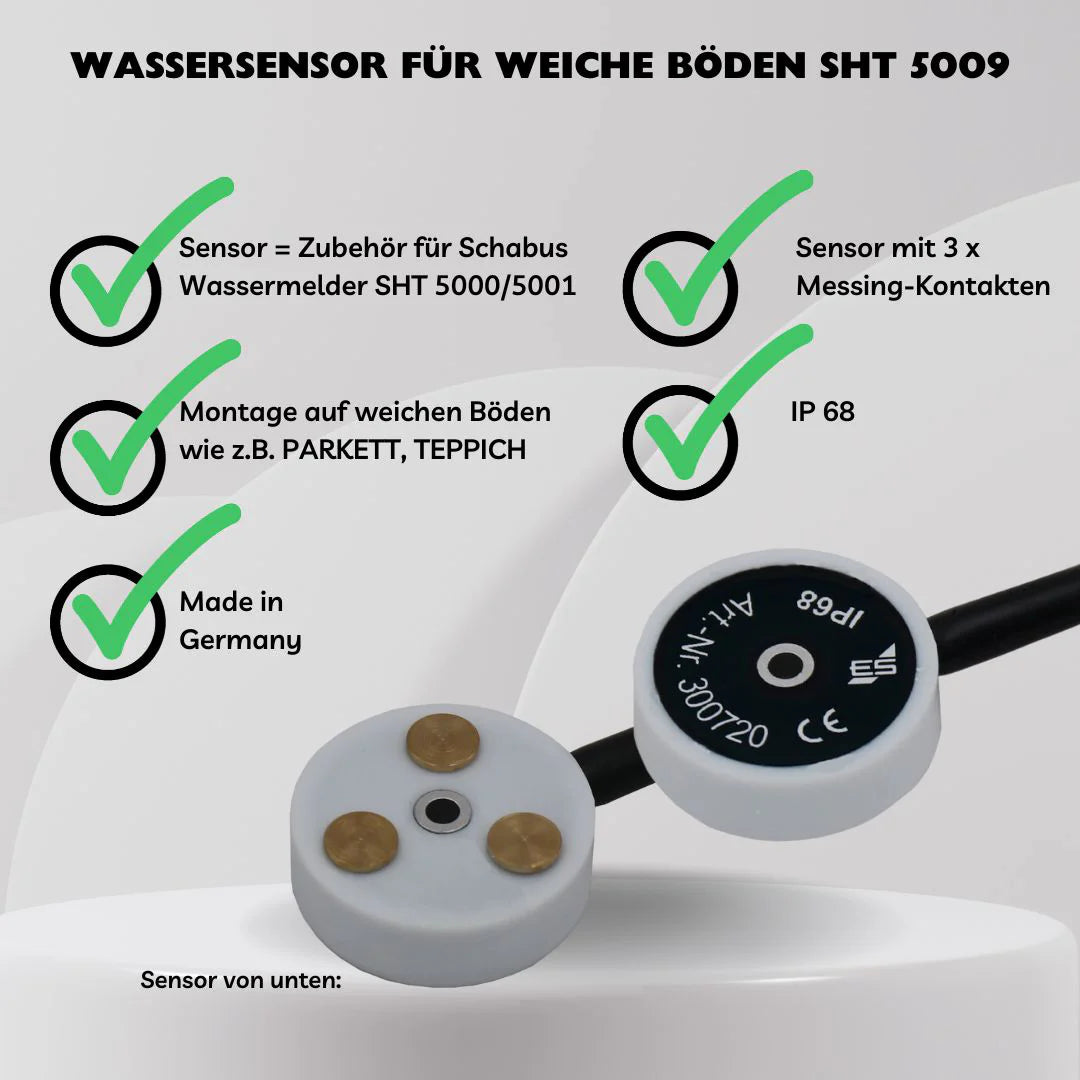

The SHT 5009 is equipped with three brass plate electrodes encapsulated in a robust Wepuran plastic housing . It is ideal for installation on soft floors such as parquet, laminate, carpet (low-pile and velour carpets), or linoleum. An aluminum-reinforced drill hole facilitates secure mounting.

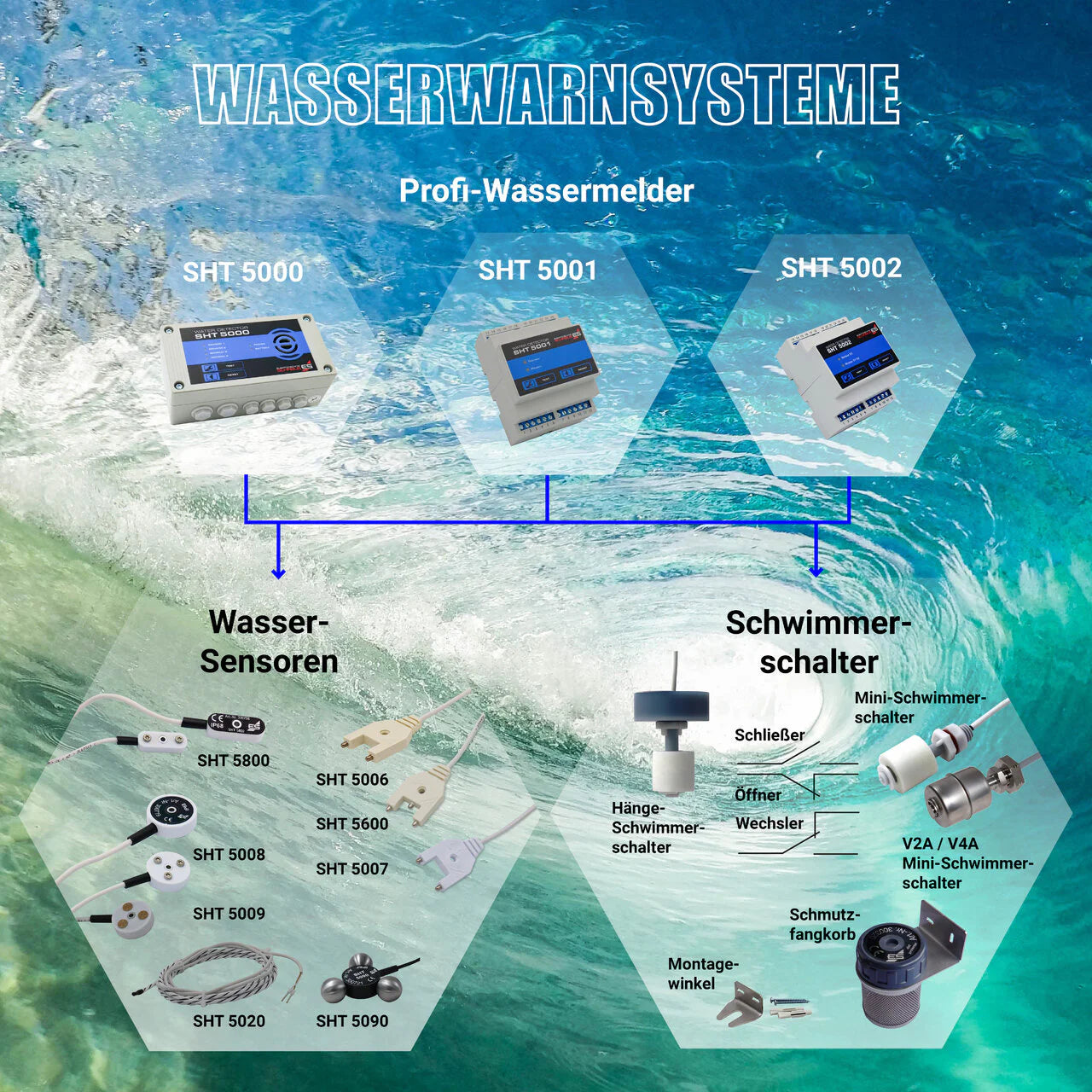

🔌 Ready to connect to Schabus water detectors
With its 2-wire cable, the sensor is compatible and ready for use with the water detectors SHT 5000 and SHT 5001.
🌊 How it works – Alarm when moisture is present
As soon as water or another conductive liquid connects the electrodes, the connected water detector immediately triggers an alarm.
📏 Cable length can be flexibly extended
The cable length can be extended up to 50 meters . The cross-section should be 2 × 0.14 mm² .
⚠️ Notes on cable routing
The LIYY cables used are only temporarily waterproof and, according to the manufacturer , are flame-retardant, self-extinguishing and resistant to oils, greases, coolants and lubricants.
Circuit diagram with freewheeling diode[/caption]
When using third-party power supplies , it is necessary to connect a freewheeling diode (e.g. 1N4148) in parallel to the relay or contactor.
The function of the freewheeling diode is to suppress voltage spikes that occur when the relay is turned off. This minimizes current flow and voltage, thus protecting the sensitive reed contacts.
| Functional area | -5°C / +50°C non-condensing humidity |
|---|---|
| Working principle | Impedance measurement, passive |
| Area of application | Bathrooms, offices, kitchens, kitchenettes, washrooms, soft floors |
| Environmental conditions | regularly dry environment |
| Line | 2 m | 2×0.14mm2 | white, special lengths on request |
| material | Wepuran® plastic, hand-cast |
| Assembly | Floor mounting |
| sensor | 3 contacts brass plate electrodes, aluminum-reinforced screw hole ⌀ 3.2 mm |
