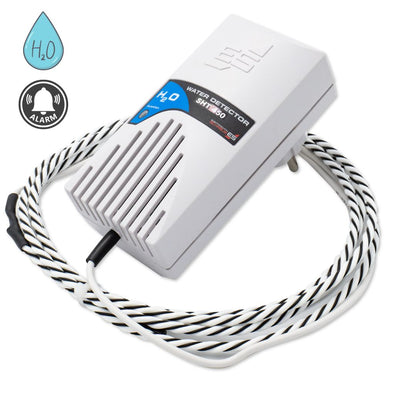

Socket water detector SHT 450 with sensor cable

Scope of delivery

• SHT 450 water detector with sensor cable
• on 1 meter LIYY control cable
• Operating instructions

💧 Comprehensive security – the SHT 450 water detector with sensor cable

Water leaks often go unnoticed for a long time – especially where they occur hidden:
Under kitchen cabinets, in laundry rooms, behind bathroom cabinets, or around the aquarium. The SHT 450 detects even the smallest drops along the entire length of its sensor cable – and warns you in time before expensive damage occurs .

A 1-meter-long, white LIYY control cable with a smooth surface begins directly at the socket device. This is followed by the sensor cable , which is clearly visible thanks to its black and white striped design .

🔌 The LIYY cable connects the socket in the wall to the floor area where the sensor cable is placed to reliably detect water leaks.

🧵 2 meter sensor cable – sensitive, robust

The supplied black and white striped sensor cable is 2 m long , reacts to moisture at any point and can be laid discreetly and across the entire area - even over corners, under furniture or along walls.

💡 The advantages at a glance:

• Detects moisture locally or over a large area – no need to search for the deepest spot

• Very robust: abrasion-resistant, corrosion-resistant, cleanable

• Conductive polymer technology: No exposed metal, safe and durable

• Easy to clean: Wipe clean with a damp cloth

The sensor cable can be extended to your desired length at the factory upon ordering. Please contact us if necessary.

Optionally, the sensor cable can be extended with a suitable LIYY control cable – see notes below.

However, the total length should not exceed 50 meters.

⚙️ Quick to install – ideal for indoor use

Simply plug the SHT 450 into a power outlet, lay out the sensor cable in the area to be monitored, and you're done! The integrated signaling device immediately sounds an alarm as soon as the cable detects moisture.

Typical areas of application:

• Kitchen and bathroom furniture 🚰

• Laundry rooms and utility rooms 🧺

• Boiler rooms 🔥

• Aquariums or water technology in the living area 🐟

• Basement and technical rooms 🧱

📏 Cable extension up to 50 meters possible

The factory-installed sensor or switch cable can be extended up to 50 m if required. A thin control cable with a cross-section of max. 2 × 0.14 mm² (LIYY type) must be used.

💡 Important: Larger cross-sections increase the cable's electrical capacitance. This can lead to false alarms or malfunctions – therefore, only thin control cables may be used!

For longer cables, we recommend having a specialist perform the connection or ordering the desired length directly from the factory. You can order the appropriate cable here: Item number: 300780

⚠️ Notes on cable routing and surroundings

• The LIYY control cables are only temporarily waterproof and according to the manufacturer:
  → flame-retardant , self-extinguishing , low-adhesion
  → largely resistant to oils, greases, coolants and lubricants

• Not suitable for permanent water contact or outdoor use without protection .

• The cables must never be laid parallel to 230 V cables to avoid interference and safety risks .
