SKU: 300772
Delivery time: 2-3 working days
View full details
<div>
<div id="performance_features_list">
Scope of delivery
</div>
<ul>

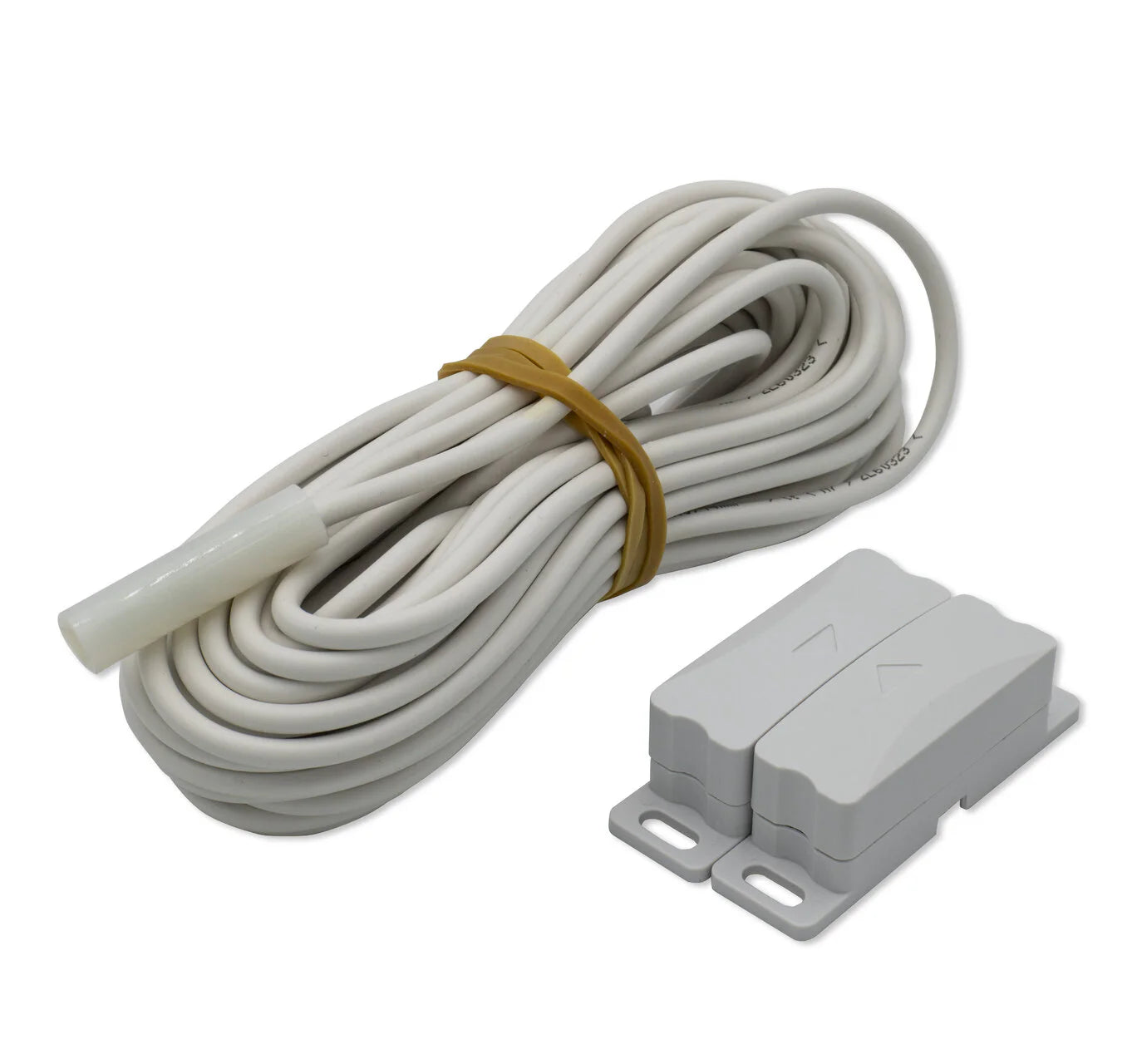

<li>Reed contact switch with 8 m cable (3-pole)</li>
<li>4 spacer plates</li>
<li>Mounting material</li>
</ul>
The universally applicable magnetic switch with changeover function and 3-wire cable can be used in dry indoor spaces and also outdoors, i.e. also on the outside of doors and windows, and with its enclosed 4 spacer plates for height adjustment, it is ideal for attachment to door and window frames as well as door and window sashes.
A control cable (LIYY 2×0.14mm²) is connected to the terminal and can be inserted from either side. This allows for series connection of multiple contact switches.
</div>
<div>The 10-watt reed switch, which can handle up to 500 mA at up to 20 volts, switches between normally closed and normally open contact depending on whether the magnet is close to the switch. Without a cable break protection device, this switch cannot be used as an extension for Schabus exhaust air and air conditioning controls.</div>
<div id="performance_features_list"></div>
<div>The enclosures are delivered in the basic color telegray-4 and, upon request, in other RAL colors.</div>
<div id="list of possible uses"></div>
<div>WEEE NO.: DE91394868</div>
| Switching capacity | 25 V AC | 60 V DC |
|---|---|
| Functional area | -15°C / +40°C |
| Protection class | IP44 |
| Power consumption | 0.5 A |
| Area of application | Exhaust air systems, for second window, model making, accessories exhaust air/climate controls |
| Environmental conditions | regularly dry environment, indoors, outdoors |
| Color | Telegray 4 |
| Relay contact | Changeover contact NC / NO |
| Line | 8 m | 3-pole |
