Item number: 301750
Delivery time: 2-3 working days
View full details
Scope of delivery
<ul>
<li>1x control unit</li>
<li>1x cable magnetic switch</li>
<li>1x control cable 6 m</li>
<li>4x spacer plates for magnet</li>
<li>Mounting material</li>
</ul>
<strong>Don't heat or cool out the window!</strong>

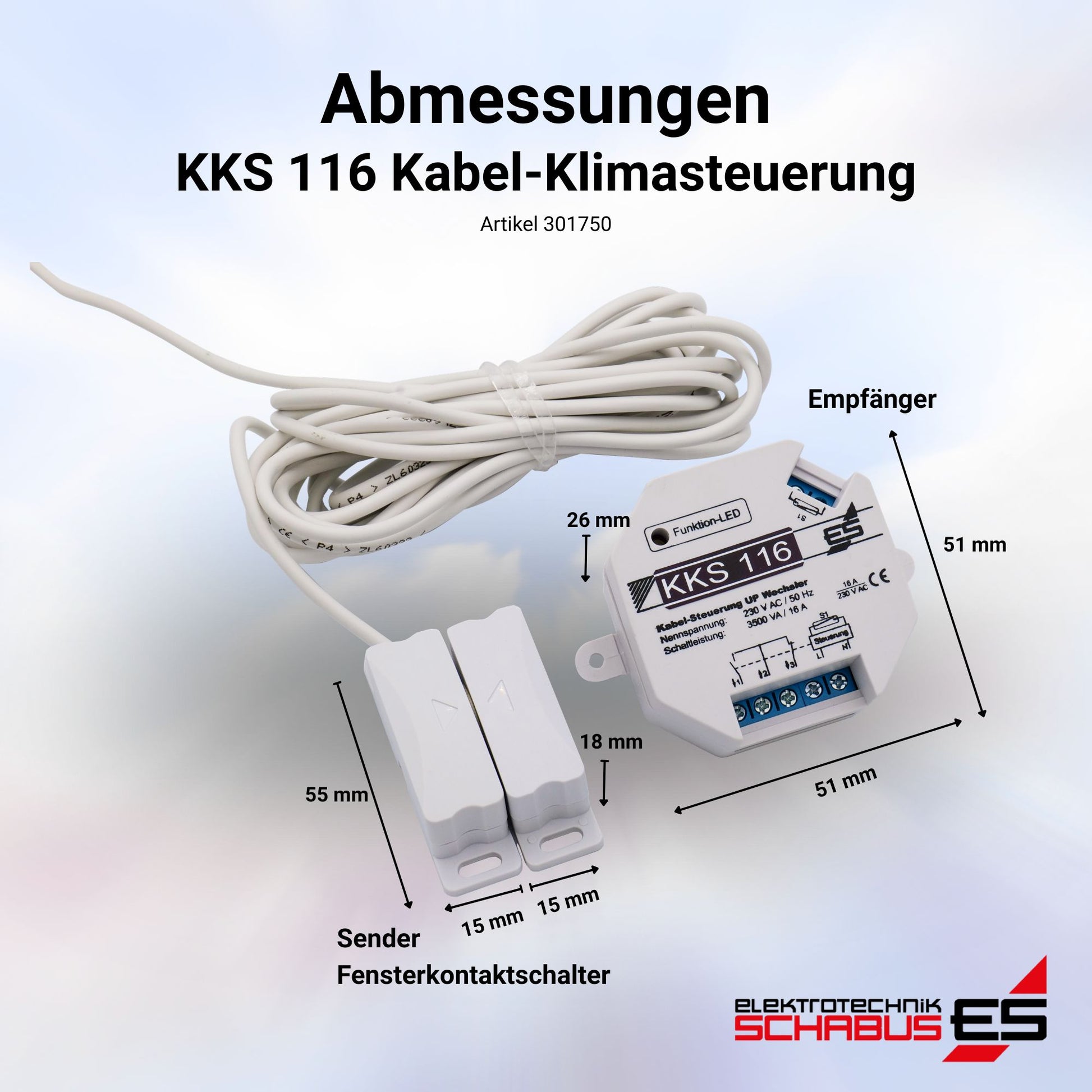

The cable magnetic switch of the KKS 116 set monitors the window position and transmits the information wirelessly to a built-in receiver with a potential-free 5A changeover relay. This allows an air conditioner to be automatically switched off when a window is tilted or open, preventing the outside air from being cooled and thus wasting energy unnecessarily.
<b>Functional description</b>
The transmitter on the window sash only releases the power supply when the window is closed. The system is equipped with a potential-free changeover contact.
Additional windows can be monitored with additional transmitters <a href="https://www.elektrotechnik-schabus.de/abluftsteuerungen/funksysteme/funk-magnetschalter-fds-098">FDS 098</a> (Art. No. 300098) or <a href="https://www.elektrotechnik-schabus.de/abluft-klimasteuerung/funk-klimasteuerung-fks-100">FDS 098 L</a> (Art. No. 300198).
The transmitters are factory-coded and built specifically for you. We need the serial number of your existing set for this.
The transmitter housing is available upon request in various <a href="https://www.elektrotechnik-schabus.de/abluft-klimasteuerung/ral-lackierung">RAL colors</a> for an additional charge of 35 euros!
* Obstacles, especially metal, can significantly reduce the range compared to open space. The actual range always depends on the specific installation.
WEEE NO.: DE91394868
| Operating voltage | 230V AC/50-60Hz |
|---|---|
| Switching performance | 1150 VA (700 W)/5 A (changer) |
| Functional area | -15°C/+40°C |
| Protection class | IP40 |
| Battery | CR2023/ 3V |
| Dimensions(WxWxD) | |
| Power consumption | 3 A |
| Setting value | 5-250W |
| Control voltage | 18V |
Scope of delivery
<ul>
<li>1x control unit</li>
<li>1x cable magnetic switch</li>
<li>1x control cable 6 m</li>
<li>4x spacer plates for magnet</li>
<li>Mounting material</li>
</ul>
<strong>Don't heat or cool out the window!</strong>
The cable magnetic switch of the KKS 116 set monitors the window position and transmits the information wirelessly to a built-in receiver with a potential-free 5A changeover relay. This allows an air conditioner to be automatically switched off when a window is tilted or open, preventing the outside air from being cooled and thus wasting energy unnecessarily.
<b>Functional description</b>
The transmitter on the window sash only releases the power supply when the window is closed. The system is equipped with a potential-free changeover contact.
Additional windows can be monitored with additional transmitters <a href="https://www.elektrotechnik-schabus.de/abluftsteuerungen/funksysteme/funk-magnetschalter-fds-098">FDS 098</a> (Art. No. 300098) or <a href="https://www.elektrotechnik-schabus.de/abluft-klimasteuerung/funk-klimasteuerung-fks-100">FDS 098 L</a> (Art. No. 300198).
The transmitters are factory-coded and built specifically for you. We need the serial number of your existing set for this.
The transmitter housing is available upon request in various <a href="https://www.elektrotechnik-schabus.de/abluft-klimasteuerung/ral-lackierung">RAL colors</a> for an additional charge of 35 euros!
* Obstacles, especially metal, can significantly reduce the range compared to open space. The actual range always depends on the specific installation.
WEEE NO.: DE91394868
| Operating voltage | 230V AC/50-60Hz |
|---|---|
| Switching performance | 1150 VA (700 W)/5 A (changer) |
| Functional area | -15°C/+40°C |
| Protection class | IP40 |
| Battery | CR2023/ 3V |
| Dimensions(WxWxD) | |
| Power consumption | 3 A |
| Setting value | 5-250W |
| Control voltage | 18V |
