EPO 100

EPO 100

399,00 €
399,00 €
Sale Sold out
Taxes included. Versandkosten

Retrofit module for PO luminaires
  • Discounts for specialist companies & resellers
  • Personal expert advice (no call center!)
  • Repair service beyond the statutory warranty

SKU: 400100

Delivery time: 2-3 working days

View full details
EPO 100

EPO 100

399,00 €
  • Description
  • Technical information
  • Reviews
Features
  • Easy to retrofit
  • Quick assembly
  • Motorized in all axes
  • Controllable wirelessly or DMX 512
  • Operation via smartphone / tablet PC (Android)
Possible applications
  • Suitable for all PO operated spotlights from the following companies: ARRI, DeSisti, SPOTLight, QUARZCOLOR, Sachtler, Filmgear, Lightstar

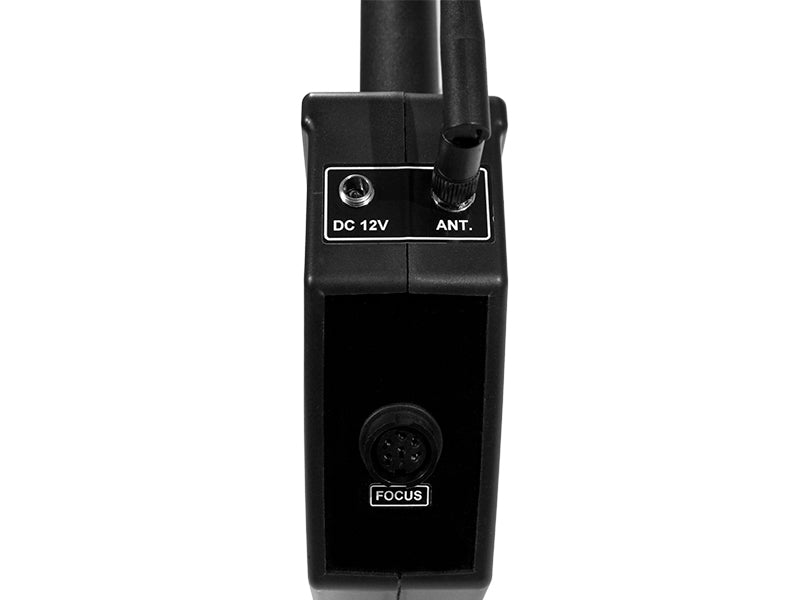

The EPO 100 retrofit module allows you to retrofit motorized PO-operated lights in just a few steps. The module docks onto existing PO domes and can be controlled via PSU Wireless or DMX. The principle of this module is motorized visual operation as an alternative to the PO pole.

Technical data

Operating principle: Motorized PAN-TILT Dimensions (LxWxH): 195x105x50 mm Ambient temperature: -30°C to +45°C Power supply: via PSU (protective extra-low voltage 12 V DC) Weight: 2130 g Rotation range (PAN): 360° Tilt range (TILT): 360° PAN/TILT speed: 4° / second

Required accessories for control:

  • Power Supply PSU 100 (Art. No.: 400206)
  • Power Supply PSU 200 (Art. No.: 400207)
  • Power Supply PSU 300 (Art. No.: 400208)
  • Connection/extension cable 1 m (Art. No.: 400301)
  • Connection/extension cable 3 m (Art. No.: 400303)
  • Connection/extension cable 6 m (Art. No.: 400306)
  • Connection/extension cable 10 m (Art. No.: 400310)
  • Safety rope (item no.: 400321)

Optional accessories :

  • 7-inch tablet PC (item no.: 400320)
  • Focus module (item no.: 400209)

WEEE No.: 91394868

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description
Features
  • Easy to retrofit
  • Quick assembly
  • Motorized in all axes
  • Controllable wirelessly or DMX 512
  • Operation via smartphone / tablet PC (Android)
Possible applications
  • Suitable for all PO operated spotlights from the following companies: ARRI, DeSisti, SPOTLight, QUARZCOLOR, Sachtler, Filmgear, Lightstar
The EPO 100 retrofit module allows you to retrofit motorized PO-operated lights in just a few steps. The module docks onto existing PO domes and can be controlled via PSU Wireless or DMX. The principle of this module is motorized visual operation as an alternative to the PO pole.

Technical data

Operating principle: Motorized PAN-TILT Dimensions (LxWxH): 195x105x50 mm Ambient temperature: -30°C to +45°C Power supply: via PSU (protective extra-low voltage 12 V DC) Weight: 2130 g Rotation range (PAN): 360° Tilt range (TILT): 360° PAN/TILT speed: 4° / second

Required accessories for control:

  • Power Supply PSU 100 (Art. No.: 400206)
  • Power Supply PSU 200 (Art. No.: 400207)
  • Power Supply PSU 300 (Art. No.: 400208)
  • Connection/extension cable 1 m (Art. No.: 400301)
  • Connection/extension cable 3 m (Art. No.: 400303)
  • Connection/extension cable 6 m (Art. No.: 400306)
  • Connection/extension cable 10 m (Art. No.: 400310)
  • Safety rope (item no.: 400321)

Optional accessories :

  • 7-inch tablet PC (item no.: 400320)
  • Focus module (item no.: 400209)

WEEE No.: 91394868
