DS-01 M Comfort Package Multiple Occupancy

DS-01 M Comfort Package Multiple Occupancy

2.499,00 €
2.499,00 €
Sale Sold out
including VAT plus Versandkosten
  • DS 01 M Comfort-Paket für Mehrfachbelegung mit 2 wodtke Pellet Primäröfen
  • schützt vor Rauchgasaustritt (und CO – Kohlenmonoxid) in gefährdender Menge über die Feuerstätte
  • Luftdruckwächter mit Abschaltfunktion (Verriegelung) der angeschlossenen Be- und Entlüftungsanlage im Alarmfall
  • für gleichzeitigen Betrieb von raumluftabhängigen Feuerstätten für zwei wodtke Pellet-Primäröfen
  • ideal für den Einsatz von Pelletöfen in Einfamilienhäusern und Maisonettwohnungen
  • nicht geeignet für offene Kamine oder offene Betriebsweise
  • erst aktiv beim Benutzen der Feuerstätte – Kontrolle über Temperaturüberwachung am Abgasrohr
  • 2 A potentialfreier Wechsel-Relaiskontakt
  • TÜV-geprüft mit DIBt-Zulassung Z-85.1-2
  • entspricht den Vorschriften der Feuerungsverordnung § 4 Absatz 2
  • Discounts for specialist companies & resellers
  • Personal expert advice (no call center!)
  • Repair service beyond the statutory warranty

Item number: 21024

Delivery time: 2-3 working days

View full details
DS-01 M Comfort Package Multiple Occupancy

DS-01 M Comfort Package Multiple Occupancy

2.499,00 €
  • Description
  • Technical information
  • Reviews

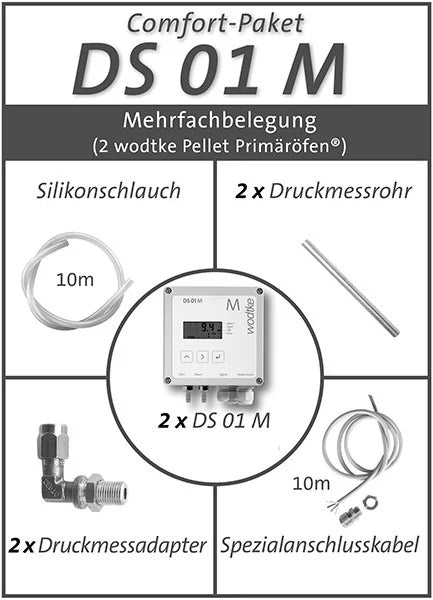

Scope of delivery
  • 21100 DS-01 M Differential pressure controller
  • 21013 Special connection cable 10 m
  • 21003 Pressure measuring adapter
  • 21004 Pressure measuring tube
  • 21002 Silicone hose, 10 m
  • detailed operating and assembly instructions
DS 01 M Comfort package for multiple occupancy with 2 wodtke pellet primary stoves Suitable for the safety monitoring of multiple occupancy of a chimney with two wodtke pellet primary stoves. The wodtke DS01 M allows up to two wodtke pellet stoves to be connected to a shared chimney simultaneously, provided both are located within the same unit, such as a single-family home or a maisonette. Since, without protective measures, there is a risk of flue gases escaping into the room through a non-active fireplace when multiple stoves are used without appropriate protective measures, the DS01 M performs a key safety function: It continuously measures the differential pressure and shuts off the active stove as soon as the negative pressure falls below a defined threshold. This reliably prevents flue gases from escaping in an emergency. A separate DS01 M module is required for each stove. Monitoring is only active during stove operation and starts automatically via the connection to the stove control system.
useful additions
WEEE NO.: DE91394868
Operating voltage 230V AC/50Hz
Switching performance max. 2 A | 250 V~ or 50 V ≈
Functional area 0°C/+60°C
Protection class IP54
Dimensions(WxWxD)

120x120x75 mm control unit
Power consumption approx. 3 VA
Brand Wodtke
Pressure -50 to 200 Pa | up to 1 kPa overload
Nominal size range -50 to +50 Pa

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description
Scope of delivery
  • 21100 DS-01 M Differential pressure controller
  • 21013 Special connection cable 10 m
  • 21003 Pressure measuring adapter
  • 21004 Pressure measuring tube
  • 21002 Silicone hose, 10 m
  • detailed operating and assembly instructions
DS 01 M Comfort package for multiple occupancy with 2 wodtke pellet primary stoves Suitable for the safety monitoring of multiple occupancy of a chimney with two wodtke pellet primary stoves. The wodtke DS01 M allows up to two wodtke pellet stoves to be connected to a shared chimney simultaneously, provided both are located within the same unit, such as a single-family home or a maisonette. Since, without protective measures, there is a risk of flue gases escaping into the room through a non-active fireplace when multiple stoves are used without appropriate protective measures, the DS01 M performs a key safety function: It continuously measures the differential pressure and shuts off the active stove as soon as the negative pressure falls below a defined threshold. This reliably prevents flue gases from escaping in an emergency. A separate DS01 M module is required for each stove. Monitoring is only active during stove operation and starts automatically via the connection to the stove control system.
useful additions
WEEE NO.: DE91394868
Technical information
Operating voltage 230V AC/50Hz
Switching performance max. 2 A | 250 V~ or 50 V ≈
Functional area 0°C/+60°C
Protection class IP54
Dimensions(WxWxD)

120x120x75 mm control unit
Power consumption approx. 3 VA
Brand Wodtke
Pressure -50 to 200 Pa | up to 1 kPa overload
Nominal size range -50 to +50 Pa
