Scope of delivery
Reliable protection against carbon monoxide

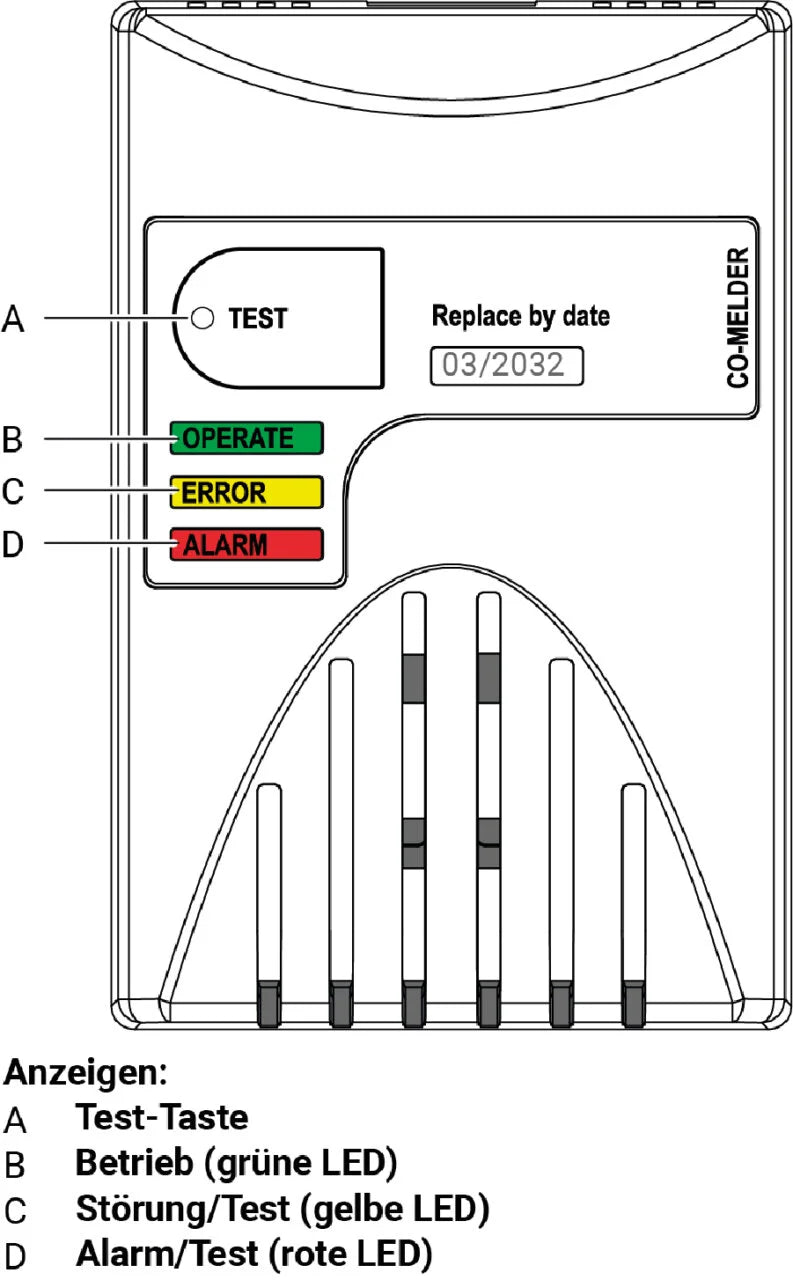

The CO detector, which complies with DIN EN 50291, was specifically designed to protect people from the acute dangers of carbon monoxide (CO). At a CO concentration of 50 ppm, the connected boiler automatically shuts down, immediately deactivating potential sources of danger. Thanks to its TÜV-tested technology and compliance with DIN EN 50291, this device offers the highest level of safety for your home.
Important instructions
Certain substances such as ethylene, ethanol, alcohol, isopropanol, gasoline, toluene, ethyl acetate, hydrogen, hydrogen sulfide, and sulfur dioxide can interfere with the CO detector and potentially trigger false alarms. Avoid using the device in rooms where these substances are present.
People with specific medical conditions should be aware that this CO detector may not provide adequate protection. In such cases, it is recommended to use a warning device that generates audible and/or visible signals at CO concentrations below 50 ppm. If in doubt, consult a physician.
For further information or personal advice, the team at Elektrotechnik Schabus will be happy to assist you
WEEE NO.: DE91394868
| Operating voltage | 24 volts DC (+/- 10%) |
|---|---|
| Functional area | 0°C / +40°C |
| Protection class | according to DIN EN 60529, IP 20 |
| Dimensions (W x W x D) | Sensor 88x58x38xmm |
| Power consumption | 29-31 mA monitoring mode, 38-41 mA alarm mode, max. 46 mA test mode |
| Connection | 6-pin, 3 of which are occupied, mechanical, RJ12 socket |
| Output signal | 20 Hz nominal (19.8-20.8 Hertz), Hi 23-27 ms (error), Hi 3-7 ms (operation), Lo 8-12 ms (alarm) |
| Evaluation | OP-AD-DA, quasi-linear after calibration +/- 1 % |
| Weight | 0.10 kg |
| life | 6 – max. 10 years (depending on environmental conditions) |
| humidity | 10% – 90% rH, non-condensing |
| Sound pressure level | 4.4 kHz, 85 dB(A) @ 1 m |
