Artikelnummer: 200200
Lieferzeit: 2-3 Werktage
Vollständige Details anzeigen

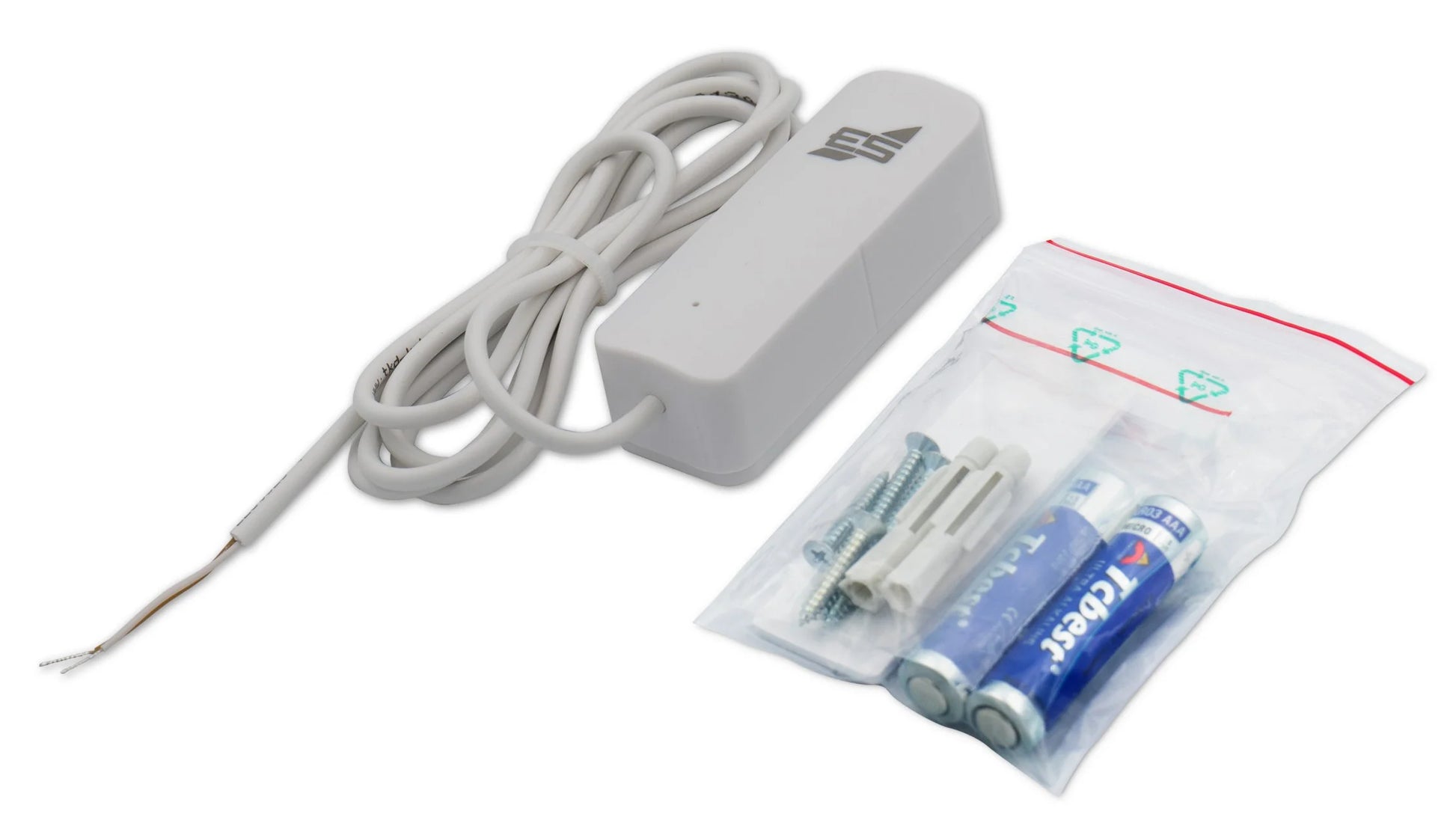

Lieferumfang
Macht Ihre Wassermelder intelligent – mit Push-Benachrichtigung direkt aufs Smartphone
Der WWD 200 von Elektrotechnik Schabus ist der perfekte Zusatz für Ihre Wassermelder vom Typ SHT 5000, SHT 5001 oder SHT 5002. Mit wenigen Handgriffen wird Ihr Wassermeldesystem „smart“ – durch die Weiterleitung von Alarmen als Push-Nachricht auf Ihr Mobiltelefon über die kostenlose Smart-Life-App (Android & iOS).
Eine blinkende blaue LED am Gerät signalisiert zusätzlich lokal einen Alarmfall.
Push notification in case of alarm
Immediate warning message on your smartphone – even when you are on the move.
Compatible with Smart Life app
Intuitive setup via free app (for Android & iOS).
Easy retrofitting
The WWD 200 can be connected to existing SHT 5000 / 5001 / 5002 water detectors at any time.
Safe battery
operation Powered by two AAA batteries – recommended: rechargeable lithium batteries with USB-C connection.
On-site visual alarm indication
Blue LED flashes in case of water alarm in addition to the push message.
Mount the device near the water detector (not suitable for outdoor use).
Connection via 1.5 m long cable to SHT 5000, 5001 or 5002. Maximum extendable to 20 meters

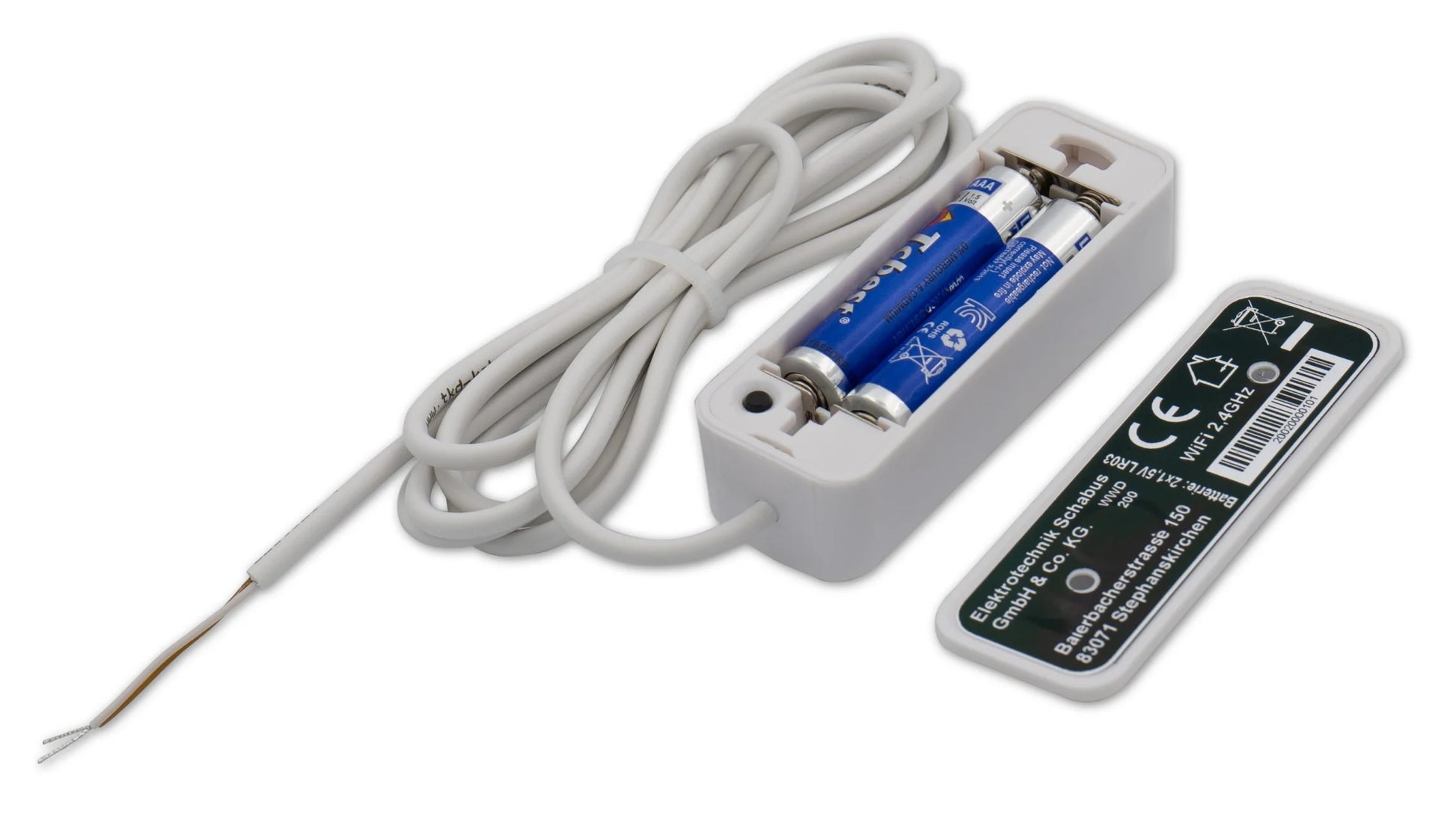

Inserting 2x AAA batteries
Wi-Fi connection via 2.4 GHz network required.

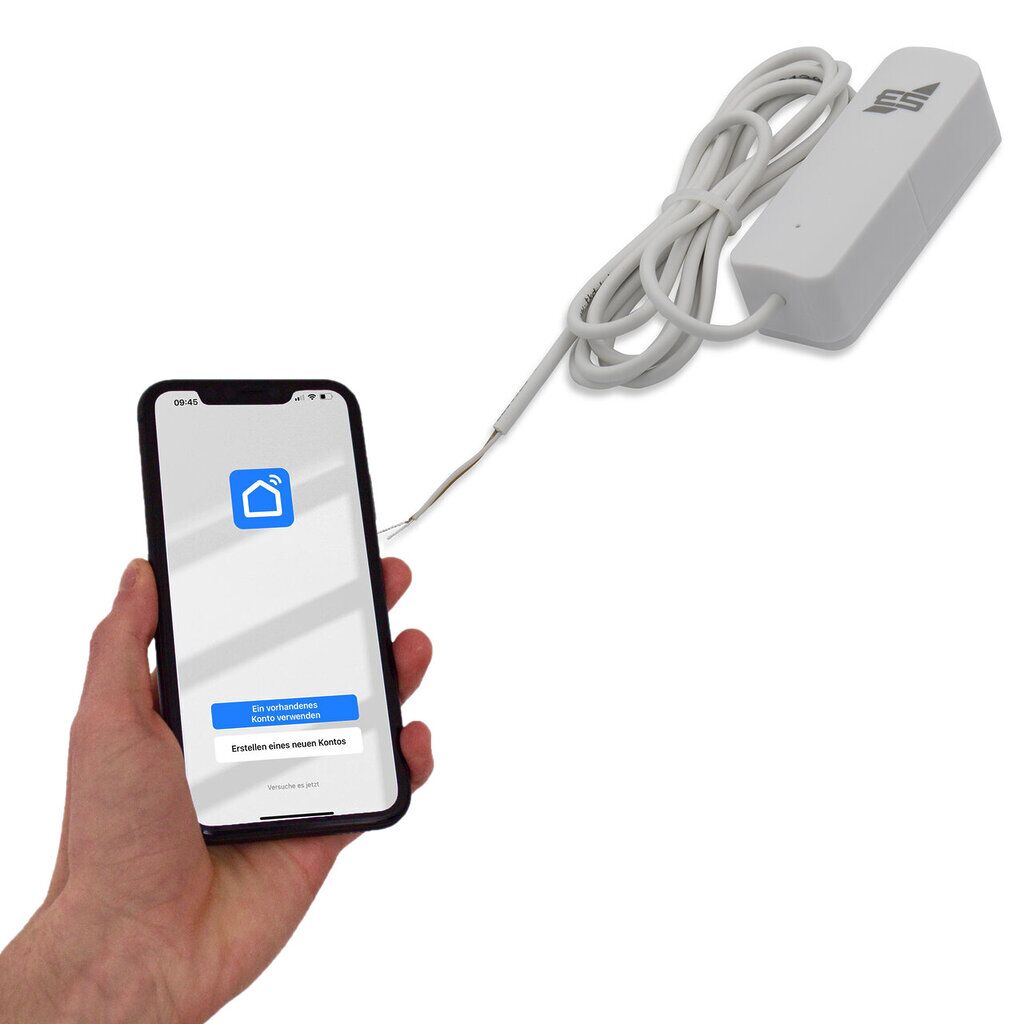

Connection with the app “ Smart Life – Smart Living ” and integration of the WWD 200.
💡 Tip:
For continuous operation, use modern lithium batteries (size AA) with a USB-C port. These can be easily recharged using a smartphone cable and provide constant power until completely discharged – unlike conventional batteries, whose voltage gradually drops and can compromise the alarm's reliability.
Battery performance chart | Lithium batteries
Example image
If the built-in main relay is used, for example, to control a pump, you will need a relay plug-in card for additional alarm forwarding via the WWD 200 for additional alarm forwarding via the WWD 200. This expands the SHT 5000 with four additional relays , allowing multiple functions to be executed independently.
WEEE NO.: DE91394868
| Alarm | optisch, Push-Nachricht |
|---|---|
| Gewicht | 0,07 kg |
| Leitung | 1,5 Meter |
| Luftfeuchtigkeit | 95% RH |
| Montage | Wandmontage |
| Strom | = 5uA statisch, Alarmstrom = 150mA |
| Temperatur | -10° bis +50C°, Arbeitstemperatur |
| Wifi | 802,11 b/g/n |
